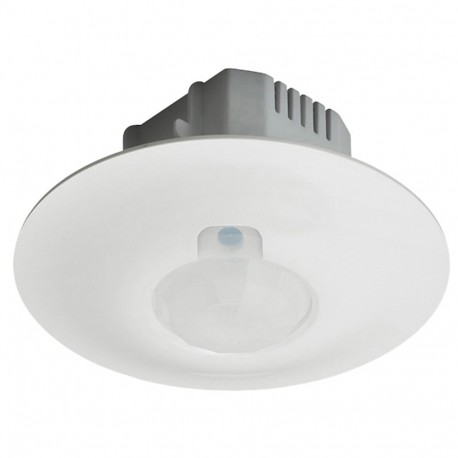

LEGRAND 048807 048807 LEGRAND DETECTOR PIR 360º, 45M2 EMP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

048807 LEGRAND DETECTOR PIR 360º, 45M2 EMP

048807

048807

LEGRAND

1 Pcs.

DETECTOR PIR 360º, 45M2 EMP Lighting management-digital passage detection-ceiling mounting-IR-360°-47 m 360º PIR detector - 8m range - recessed/ceiling installation

Automation > Movement sensor complete
AUTONOMOUS LIGHTING MANAGEMENT

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Functioning as a comprehensive movement sensor, the 048807 LEGRAND DETECTOR PIR 360º, 45M2 EMP provides broad-area spatial monitoring for commercial electrical networks. These sensors are standard components in architectural automation projects aimed at optimizing energy consumption.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bridging switch: Yes
  • Staircase light controller: Yes
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Min. switch-on time: 5 s
  • Compatible with Apple HomeKit: No
  • Detection angle horizontal: 0 °
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Networkable: No
  • Response value sensitivity adjustable: Yes
  • RAL-number (similar): 9003
  • Animal zone: No
  • Model: Movement sensor
  • With alarm function: Yes
  • Optimum mounting height: 2.5 m

More info

▲
  • Energy efficiency solution
  • Pack (number of units)1
  • Volume (dm3)1.563
  • Weight (g)213.00
Product characteristics
Ideal for passage areas
PIR ceiling-mounting Lighting Management sensors, 360°
  • Fix directly to a false ceiling with mounting claws (included) or installed in a Batibox box, depth 50 mm, Cat.No 0 893 58
  • 3-wire with neutral
  • Standby consumption: 0.4 W
  • Recommended fixing height: 2.5 m
  • Range Ø8 m
  • Optimum distance between 2 sensors: 6 m
  • Connection via automatic terminals
  • Surface mounted on ceiling using accessory Cat.No 0 488 75
General characteristics
Lighting Management sensors for 1 circuit - Lighting Management sensors for passage areas with natural light
  • Check presence and natural light level continuously, switch off when there is sufficient natural light
  • Occupancy mode (automatic switch-on/off factory setting)
  • Can be used with push-button Cat.No 0 770 40 (or illuminated push-button Cat.No 0 770 33) for vacancy mode (manual switch-on and manual or automatic switch-off)
  • Precise on-site adjustment using configuration tool Cat.No 0 882 30
  • Adjustable time delay: 5 s to 59 min
  • Light level threshold adjustable from 5 to 1275 lux
