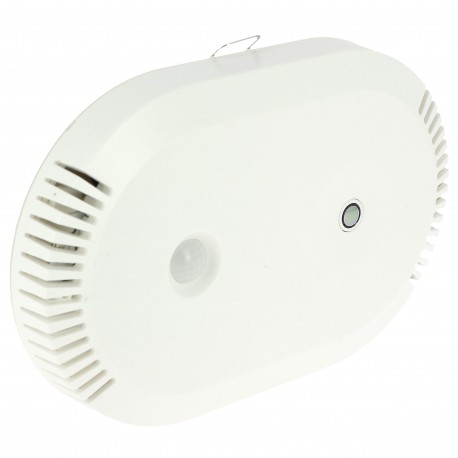

LEGRAND 048572 048572 LEGRAND ADVANCED DALI MULTI-SENSOR View larger
Images are for illustrative purposes only. Please refer to data sheet for details

048572 LEGRAND ADVANCED DALI MULTI-SENSOR

048572

048572

LEGRAND

1 Pcs.

ADVANCED DALI MULTI-SENSOR Advanced DALI Light Up Multisensor

Automation > Movement sensor for bus system

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 048572 advanced DALI multi-sensor is a sophisticated presence detector engineered to regulate lighting and building automation through digital addressable lighting interfaces. Such multi-sensors play a critical role in modern energy management by combining occupancy detection and daylight harvesting. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 76.7 mm
  • Suitable for ceiling mounting (EF021180): Yes
  • Staircase light controller (EF001098): Yes
  • Bus system LON (EF003831): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Bus system KNX (EF001499): No
  • Min. switch-on time (EF006589): 15 s
  • Detection angle horizontal (EF006582): 0 °
  • Detection angle vertical (EF006581): 0 °
  • Bus system KNX-RF (Radio Frequency) (EF008855): No
  • RAL-number (similar) (EF003882): 9003
  • Operation mode switch (EF004530): No
  • Model (EF000010): Presence detector
  • Animal zone (EF006311): No
  • Optimum mounting height (EF008011): 2.5 m

More info

▲
Flexible range of sensors for all types of applicationsAdapts the lighting to presence and brightnessWireless master-slave function to expand the detection area by associating a slave detector to the detector connected to the luminairePossibility to combine a battery-free wireless light switch (ref. 7 418 13L/43L/73L) and a connected power socket (ref.7 418 11/41/71)Allows to manage and control 3 different lighting zones depending on daylight (+ function Offset)Configuration with the Close Up appMeasure environmental data: daylight, temperature, humidity, VOCs, IAQs, sound...
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemYes
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsZigbee
Bidirectional Radio FrequencyYes
ModelPresence detector
Type of mountingRecessed mounted (plaster)
Suitable for ceiling mountingYes
MaterialPlastic
Material qualityThermoplastic
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentNo
With bus connectionNo
Input ExtensionsYes
Creep Protection/Field MonitoringNo
Operation Mode SwitchNo
Animal ZoneNo
Stair Lighting ControllerYes
Adjustable response brightnessYes
Learn function for responsive brightnessYes
DALI-2 CertifiedYes
Optimal mounting height2.5 m
Side reach8 m
Front Reach8 m
Vertical Detection Angle (Min-Max)0-160 °
Horizontal Sensing Angle (Min-Max)0-360 °
Number of channels64
Switching power1500 W
Minimum duty cycle15 seconds
Maximum duty cycle59 min
Width103 mm
Height76.7 mm
Depth157 mm
Installation Depth52.8 mm
Mounting Diameter68 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature (Min-Max)5-30 °C
Storage Temperature (Min-Max)-20-70 °C
Type of voltageAC
Neutral MandatoryYes
Halogen-freeYes
Connection MethodScrew-on terminal
AddressableYes
Contains battery and/or accumulatorNo
IEC DesignationNot applicable
Battery or accumulator (Pack1)Not applicable
Connected ObjectYes
Method of operationZigbee, Phase Cut Activation
App download platformApp Store, Google Play Store
With voice commandNo
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxNo
App NameLegrand Close-Up
Product usage functionEnergy and lighting management
Programming mediumWeb software
