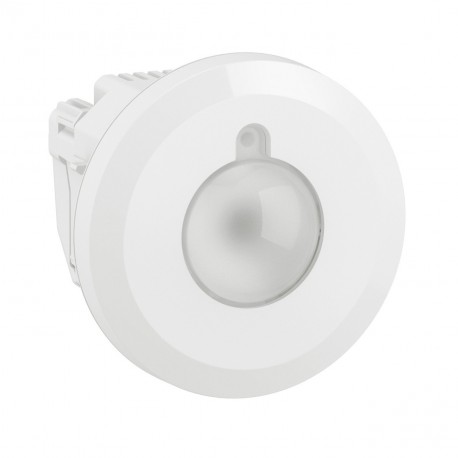

LEGRAND 048555 048555 LEGRAND DALI SENSOR 3 ZONES View larger
Images are for illustrative purposes only. Please refer to data sheet for details

048555 LEGRAND DALI SENSOR 3 ZONES

048555

048555

LEGRAND

1 Pcs.

DALI SENSOR 3 ZONES DALI Light Up Sensor 3 zones, for office and workspaces DALI Light Up Sensor 3 zones

Automation > Movement sensor for bus system

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The DALI SENSOR 3 ZONES supplied by Legrand as part number 048555 functions as a multi-zone ceiling sensor designed to regulate digital addressable lighting interface networks. Lighting designers routinely use zonal sensors of this type in modern office buildings to create flexible, automated illumination schemes. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 83.2 mm
  • Suitable for ceiling mounting (EF021180): Yes
  • Staircase light controller (EF001098): Yes
  • Bus system LON (EF003831): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Bus system KNX (EF001499): No
  • Min. switch-on time (EF006589): 15 s
  • Detection angle horizontal (EF006582): 0 °
  • Bus system KNX-RF (Radio Frequency) (EF008855): No
  • RAL-number (similar) (EF003882): 9003
  • Operation mode switch (EF004530): No
  • Model (EF000010): Presence detector
  • Animal zone (EF006311): No
  • Optimum mounting height (EF008011): 2.5 m
  • Max. duty cycle (EF006590): 59 min

More info

▲
Flexible range of sensors for all types of applicationsAdapts the lighting to the presence and brightnessWireless master-slave function to expand the detection area by associating a slave detector to the detector connected to the luminairePossibility of combining a battery-free wireless switch (ref. 7 418 13L/43L/73L) and a connected power socket (ref. 7 418 11/41/71)Allows to manage and control 3 different lighting zones depending on daylight (+ function Setting Up with the Close Up App
KNX bus systemNo
KNX-RF bus system (radio frequency)No
Radio frequency bus systemYes
LON Bus SystemNo
Powernet Bus SystemNo
Other bus systemsZigbee
Bidirectional Radio FrequencyYes
ModelPresence detector
Type of mountingRecessed mounted (plaster)
Suitable for ceiling mountingYes
MaterialPlastic
Material qualityThermoplastic
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentNo
With bus connectionNo
Input ExtensionsYes
Creep Protection/Field MonitoringNo
Operation Mode SwitchNo
Animal ZoneNo
Stair Lighting ControllerYes
Adjustable response brightnessYes
Learn function for responsive brightnessYes
DALI-2 CertifiedYes
Optimal mounting height2.5 m
Ground Sensing Diameter12 m
Horizontal Sensing Angle (Min-Max)0-360 °
Number of channels64
Minimum duty cycle15 seconds
Maximum duty cycle59 min
Width83 mm
Height83.2 mm
Depth83 mm
Diameter83 mm
Installation Depth59.3 mm
Mounting Diameter68 mm
Impact resistanceIK04
Protection Class (IP)IP20
Operating Temperature (Min-Max)-10-30 °C
Storage Temperature (Min-Max)-20-70 °C
Type of voltageAC
Neutral MandatoryYes
Halogen-freeYes
Connection MethodScrew-on terminal
AddressableYes
Contains battery and/or accumulatorNo
IEC DesignationNot applicable
Battery or accumulator (Pack1)Not applicable
Connected ObjectYes
Method of operationZigbee, Phase Cut Activation
App download platformApp Store, Google Play Store
With voice commandNo
ProgrammableYes
Connection Protocol InteroperabilityYes
Possibility of connection via Internet boxNo
App NameLegrand Close-Up
Product usage functionEnergy and lighting management
Programming mediumWeb software
