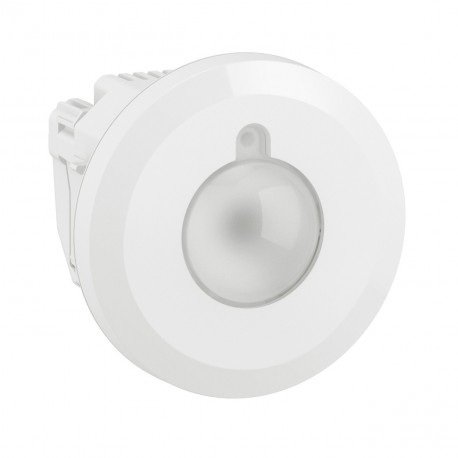

048552 LEGRAND DALI PRESENCE SENSOR
048552
048552
LEGRAND
1 Pcs.
Automation > Movement sensor for bus system
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Legrand DALI presence sensor (048552) serves as an intelligent room monitoring unit designed to optimize indoor illumination and energy consumption.
Ceiling presence sensors integrate into commercial lighting architectures to automatically regulate luminaire output based on physical presence and ambient daylight levels.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 83.2 mm
- Suitable for ceiling mounting (EF021180): Yes
- Staircase light controller (EF001098): Yes
- Bus system LON (EF003831): No
- Material quality (EF001257): Thermoplastic
- Mounting method (EF000003): Flush mounted
- Bus system KNX (EF001499): No
- Min. switch-on time (EF006589): 15 s
- Detection angle horizontal (EF006582): 0 °
- Bus system KNX-RF (Radio Frequency) (EF008855): No
- RAL-number (similar) (EF003882): 9003
- Operation mode switch (EF004530): No
- Model (EF000010): Presence detector
- Animal zone (EF006311): No
- Optimum mounting height (EF008011): 2.5 m
- Max. duty cycle (EF006590): 59 min
More info
▲| KNX bus system | No |
|---|---|
| KNX-RF bus system (radio frequency) | No |
| Radio frequency bus system | Yes |
| LON Bus System | No |
| Powernet Bus System | No |
| Other bus systems | Zigbee |
| Bidirectional Radio Frequency | Yes |
| Model | Presence detector |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | Yes |
| Material | Plastic |
| Material quality | Thermoplastic |
| Surface Finish | Mate |
| Colour | White |
| RAL number (similar) | 9003 |
| Transparent | No |
| With bus connection | No |
| Input Extensions | Yes |
| Creep Protection/Field Monitoring | No |
| Operation Mode Switch | No |
| Animal Zone | No |
| Stair Lighting Controller | Yes |
| Adjustable response brightness | Yes |
| Learn function for responsive brightness | Yes |
| DALI-2 Certified | Yes |
| Optimal mounting height | 2.5 m |
| Ground Sensing Diameter | 12 m |
| Horizontal Sensing Angle (Min-Max) | 0-360 ° |
| Number of channels | 64 |
| Minimum duty cycle | 15 seconds |
| Maximum duty cycle | 59 min |
|---|---|
| Width | 83 mm |
| Height | 83.2 mm |
| Depth | 83 mm |
| Diameter | 83 mm |
| Installation Depth | 59.3 mm |
| Mounting Diameter | 68 mm |
| Impact resistance | IK04 |
| Protection Class (IP) | IP20 |
| Operating Temperature (Min-Max) | -10-30 °C |
| Storage Temperature (Min-Max) | -20-70 °C |
| Type of voltage | AC |
| Neutral Mandatory | Yes |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Addressable | Yes |
| Contains battery and/or accumulator | No |
| IEC Designation | Not applicable |
| Battery or accumulator (Pack1) | Not applicable |
| Connected Object | Yes |
| Method of operation | Zigbee, Phase Cut Activation |
| App download platform | App Store, Google Play Store |
| With voice command | No |
| Programmable | Yes |
| Connection Protocol Interoperability | Yes |
| Possibility of connection via Internet box | No |
| App Name | Legrand Close-Up |
| Product usage function | Energy and lighting management |
| Programming medium | Web software |
