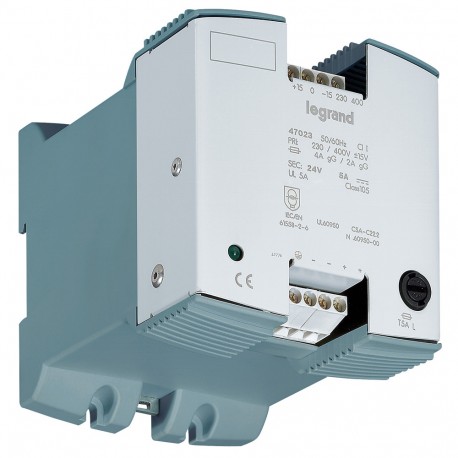

047023 LEGRAND SOURCE ALIM FILTR 24V 120W 5A
047023
047023
LEGRAND
1 Pcs.
SOURCE ALIM FILTR 24V 120W 5A
Legrand Filtered Power Supply Single Phase 230/400V AC 24V DC 5A 120W
Single-phase power supply rectified and filtered - 24V= - 120W- 5A
Automation > DC-power supply
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Single phase filtered Filtered power supplies for PLCs and other equipment requiring a voltage of 12 V DC or 24 V DC Include: * twin output terminals for ease of connection * safety transformer with interference filtration * fuse protection on output * green LED output voltage indicator * capacitor in filtered range Supplied with a connection link for quick connection between - up to 15A Fixing options: - clip directly to DIN rail up to 24 W - clip on or screw fixing up to 120 W - screw fixing only above 120 W
| Voltage type (supply voltage) | AC/DC |
|---|---|
| 1st secondary output voltage | 24-24 V |
| Max. output current 1 | 5 A |
| Secondary voltage adjustable | No |
| Nominal value output voltage 1 | 24 V |
| Nominal value output current 1 | 5 A |
| Short-circuit-proof | Yes |
| Rated supply voltage AC 50 Hz | 230-400 V |
| Rated supply voltage AC 60 Hz | 230-400 V |
| Output voltage stabilized | No |
| Power output | 120 W |
| Stabilized | No |
|---|---|
| Type of electric connection | Screw connection |
| Suitable for rail mounting | Yes |
| Suitable for wall mounting | Yes |
| Suitable for distribution board | No |
| Built-in width | 115 mm |
| Direct mounting possible | Yes |
| Width | 105 mm |
| Height | 135 mm |
| Depth | 115 mm |
| Suitable for safety functions | Yes |
| Feature Name | Feature Value |
|---|---|
| Power output (EF003034) | 120 W |
| Height (EF000040) | 135 mm |
| Wall mounting possible (EF003973) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Output voltage stabilized (EF003092) | No |
| Rated supply voltage AC 50 Hz (EF007076) | 230 V |
| Rated supply voltage AC 60 Hz (EF007077) | 230 V |
| Short-circuit-proof (EF007332) | Yes |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Max. output current 1 (EF008284) | 5 A |
| Nominal value output current 1 (EF009396) | 5 A |
| Modular version (EF001126) | No |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Direct mounting possible (EF005689) | Yes |
| Stabilized (EF005302) | No |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 24 V |
| Secondary voltage adjustable (EF007002) | No |
| Depth (EF000049) | 115 mm |
| Width (EF000008) | 105 mm |
| Built-in width (EF000846) | 115 mm |
