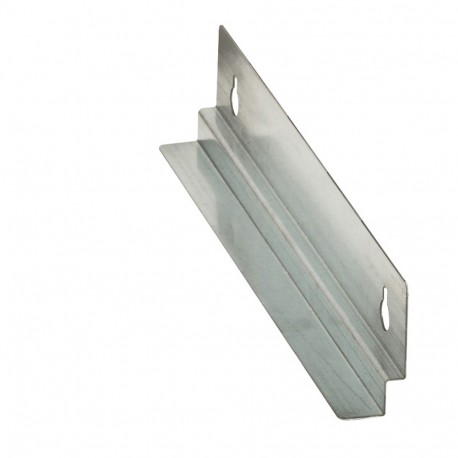

LEGRAND 046511 046511 LEGRAND LCS-GUIDE ARM PROF 600 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

046511 LEGRAND LCS-GUIDE ARM PROF 600

046511

046511

LEGRAND

1 Pcs.

LCS-GUIDE ARM PROF 600 Sliding rail (2) - for enclosures depth 600 mm Set of 2 fixed brackets for 600mm deep cabinets

Automation > Component for installation (switchgear cabinet)
ENCLOSURES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 046511 LEGRAND LCS-GUIDE ARM PROF 600 acts as a structural sliding rail and support mechanism designed to guide and mount rack-mounted equipment or modular sub-assemblies inside enclosures. Guide arms provide smooth mechanical insertion and reliable weight distribution for internal rack units.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 69 mm
  • Model (EF000010): Support rail
  • Material (EF002169): Metal
  • Depth (EF000049): 382 mm
  • Colour (EF000007): Stainless steel
  • Suitable for enclosure building width (EF000326): 482.6 mm
  • RAL-number (EF000116): 0
  • Width (EF000008): 35 mm
  • Suitable for enclosure building depth (EF000327): 600 mm
  • Suitable for enclosure building height (EF009583): 69.5 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.00
  • Weight (g)898.00
Product characteristics
Set of 2 fixed guide rails
  • For 19” cabinets and server cabinets, Bati-rack and Altis 19” cabinets
  • Mounting on 4 x 19" uprights
  • Maximum load: 50 kg
  • For depth 600 mm
General characteristics
Legrand cabling system LCS³ enclosures - 19'' accessories
