View larger
Images are for illustrative purposes only. Please refer to data sheet for details

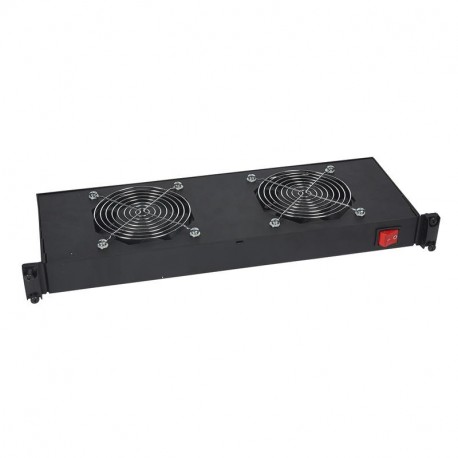

046489 LEGRAND LCS-2VENT AXIA 19" 1U PROF 150
046489
046489
LEGRAND
1 Pcs.
LCS-2VENT AXIA 19" 1U PROF 150
19" ventilation shelf - 1 U - for encloures - with 2 fans - depth 150 mm
Tray with 2 axial fans Prof. 150mm
Automation > Ventilator (switchgear cabinet)
ENCLOSURES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)6.12
- Weight (g)3 254.00
Product characteristics
Temperature management1 U ventilation drawers
- For circulation of internal air
- Fixed onto 2 x 19" uprights
- ON/OFF switch
- Supplied with power supply cord 230 V~
- Black RAL 9005
- Drawer with 2 fans
- Depth 150 mm
General characteristics
Legrand cabling system LCS³ enclosures - 19'' accessories| Feature Name | Feature Value |
|---|---|
| Operating voltage AC 50 Hz (EF008206) | 230 V |
| Suitable for wall built-in (EF007536) | No |
| Operating voltage AC 60 Hz (EF008207) | 230 V |
| Height (EF000040) | 43 mm |
| With filter (EF006013) | No |
| Air circulator (EF007516) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Voltage type (EF000187) | AC |
| Built as slide-in ventilator (EF007126) | No |
| Mounting method (EF000003) | Screw mounting |
| Roof ventilator (EF007099) | No |
| Rated power (EF007051) | 36 W |
| Volume flow, freeblowing (EF007173) | 180 m³/h |
| EMC-version (EF001062) | No |
| Number of fans (EF000928) | 2 |
| Depth (EF000049) | 150 mm |
| Suitable for 19 inch rack mounting (EF000337) | Yes |
| Colour (EF000007) | Black |
| RAL-number (EF000116) | 9005 |
| Width (EF000008) | 482 mm |
