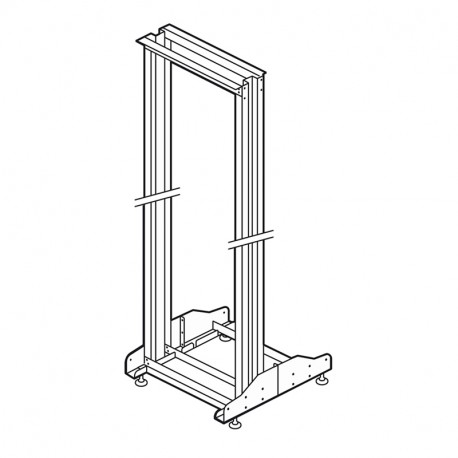

LEGRAND 046395 046395 LEGRAND LKO-BATI RACK 19" 42U 2 MOUNTED View larger
Images are for illustrative purposes only. Please refer to data sheet for details

046395 LEGRAND LKO-BATI RACK 19" 42U 2 MOUNTED

046395

046395

LEGRAND

1 Pcs.

LKO-BATI RACK 19" 42U 2 MOUNTED 19" bati-rack - 42 U - 1956 x 540 x 640 mm Open rack 19'' - 42U - 1965x550x640mm - Load 300Kg - 2 uprights

Automation > Network/server enclosure
ENCLOSURES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand LKO-BATI RACK 19" 42U 2 MOUNTED (046395) operates as an open structural rack framework utilized for mounting 19-inch IT hardware, patch panels, and telecommunication devices where maximum ventilation and unobstructed cable access are required. Open racks provide modular organization for non-sensitive network equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 1965 mm
  • Degree of protection (IP) (EF005474): IP00
  • Material (EF002169): Steel
  • With front door (EF007377): No
  • Number of doors (EF000122): 0
  • Surface finishing (EF006569): Powder coated
  • Demountable (EF007551): Yes
  • With roof plate (EF007375): No
  • With base (EF005070): No
  • With earthing (EF007376): Yes
  • With vertical cable management (EF011936): No
  • Max. load capacity (EF000258): 300 kg
  • RAL-number (EF000116): 7035
  • Model (EF000010): With permanent frame
  • Number of height units (EF003561): 42
  • With glazed door (EF001089): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)50.936
  • Weight (g)21 400.00
Product characteristics
19'' Bati-rack
  • For housing 19'' equipment in an air conditioned, secure, dust-free environment
  • Comprises 2 or 4 x 19'' uprights
  • With levelling feet
  • The 4-upright bati-rack takes shelves for enclosures depth 800 mm
  • Supplied ready for assembly
  • RAL 7035
  • Capacity: : 42 U
  • Height (without adjustment levelling feet: + 27 to 42 mm with feet): : 1965 mm
  • Width: : 550 mm
  • Depth: : 640 mm
  • Loading capacity: : 300 kg
  • Number of uprights: : 2
General characteristics
19'' Bati-rack
