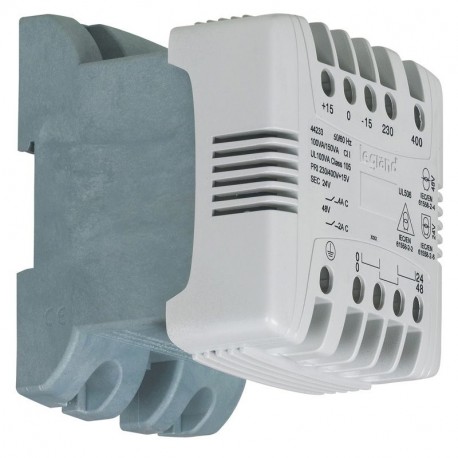

044264 LEGRAND TRANSFORMER 230-400V/115-230V 160VA
044264
044264
LEGRAND
1 Pcs.
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ensuring stable power distribution, the Legrand 044264 control transformer adapts primary supply voltages for use in industrial control loops and automation equipment. Industrial engineers rely on these units to electrically isolate control circuits and protect connected automation hardware. Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Primary voltage 2 (EF006126): 230 V
- Built as isolating transformer (EF007238): Yes
- Height (EF000040): 112 mm
- Primary voltage 1 (EF006125): 215 V
- Degree of protection (IP) (EF005474): IP2X
- Primary voltage 4 (EF007410): 385 V
- Primary voltage 5 (EF007411): 400 V
- Built as safety transformer (EF007235): No
- Rated apparent power (EF008864): 160 VA
- Primary voltage 6 (EF007412): 415 V
- Primary voltage 3 (EF006127): 245 V
- Secondary voltage 1 (EF007472): 115 V
- Relative short circuit voltage (EF007452): 6.94 %
- Secondary voltage 2 (EF007474): 230 V
- Type of insulation material according to IEC 85 (EF007299): B
- Short-circuit-proof (EF007332): No
More info
▲| Built as safety transformer | No |
|---|---|
| Built as isolating transformer | Yes |
| Built as energy saving transformer | No |
| Primary voltage 1 | 215-215 V |
| Primary voltage 2 | 230-230 V |
| Primary voltage 3 | 245-245 V |
| Primary voltage 4 | 385-385 V |
| Primary voltage 5 | 400-400 V |
| Primary voltage 6 | 415-415 V |
| Secondary voltage 1 | 115-115 V |
| Secondary voltage 2 | 230-230 V |
| Rated apparent power | 160 VA |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
|---|---|
| Relative short circuit voltage | 6.94 % |
| Width | 94 mm |
| Height | 112 mm |
| Depth | 113 mm |
| Degree of protection (IP) | IP2X |
| Ring core | No |
| Suitable for mounting on PCB | No |
| Suitable for distribution board | Yes |
| degree of impact strength (IK) | IK04 |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Connection type | Screwed terminal |
