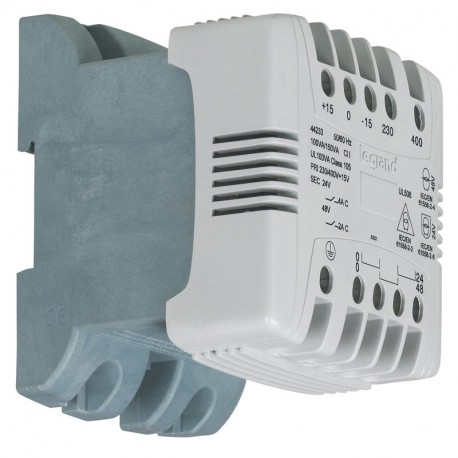

044263 LEGRAND TRANSFORMER 230-400V/115-230V 100VA
044263
044263
LEGRAND
1 Pcs.
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An isolating transformer manufactured by Legrand, identified by part number 044263, built to provide galvanic separation between primary and secondary distribution circuits. Devices of this type are widely deployed in machinery and control enclosures to prevent ground loops, reduce electrical noise, and manage equipment voltage requirements.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Primary voltage 2 (EF006126): 230 V
- Built as isolating transformer (EF007238): Yes
- Height (EF000040): 94 mm
- Primary voltage 1 (EF006125): 215 V
- Degree of protection (IP) (EF005474): IP2X
- Primary voltage 4 (EF007410): 385 V
- Primary voltage 5 (EF007411): 400 V
- Built as safety transformer (EF007235): No
- Rated apparent power (EF008864): 100 VA
- Primary voltage 6 (EF007412): 415 V
- Primary voltage 3 (EF006127): 245 V
- Secondary voltage 1 (EF007472): 115 V
- Relative short circuit voltage (EF007452): 8.71 %
- Secondary voltage 2 (EF007474): 230 V
- Type of insulation material according to IEC 85 (EF007299): B
- Short-circuit-proof (EF007332): No
More info
▲| Built as safety transformer | No |
|---|---|
| Built as isolating transformer | Yes |
| Built as energy saving transformer | No |
| Primary voltage 1 | 215-215 V |
| Primary voltage 2 | 230-230 V |
| Primary voltage 3 | 245-245 V |
| Primary voltage 4 | 385-385 V |
| Primary voltage 5 | 400-400 V |
| Primary voltage 6 | 415-415 V |
| Secondary voltage 1 | 115-115 V |
| Secondary voltage 2 | 230-230 V |
| Rated apparent power | 100 VA |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
|---|---|
| Relative short circuit voltage | 8.71 % |
| Width | 94 mm |
| Height | 94 mm |
| Depth | 113 mm |
| Degree of protection (IP) | IP2X |
| Ring core | No |
| Suitable for mounting on PCB | No |
| Suitable for distribution board | Yes |
| degree of impact strength (IK) | IK04 |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Connection type | Screwed terminal |
