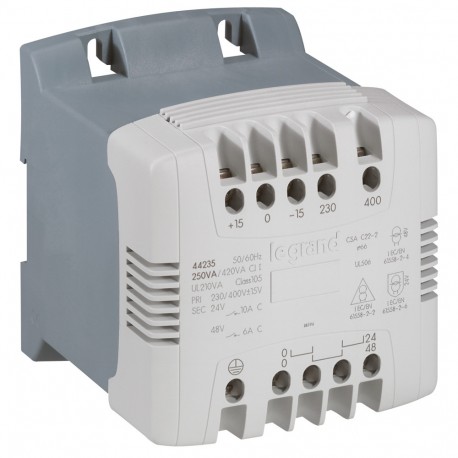

LEGRAND 044235 044235 LEGRAND TRANSF 230-400V/24-48V 250VA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

044235 LEGRAND TRANSF 230-400V/24-48V 250VA

044235

044235

LEGRAND

1 Pcs.

TRANSF 230-400V/24-48V 250VA Legrand Transformer Single Phase 230/400V 24/48V 250VA Transformer control and signal mono terminals w/screw - 230/400 - 24/48 250VA

Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 044235 is an isolating and safety transformer designed to step down electrical voltages in industrial control panels and machinery. Units of this type supply stable, separated low voltage to sensitive control circuits and auxiliary devices while protecting operators from line voltage hazards.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Primary voltage 2 (EF006126): 230 V
  • Built as isolating transformer (EF007238): Yes
  • Height (EF000040): 123 mm
  • Primary voltage 1 (EF006125): 215 V
  • Degree of protection (IP) (EF005474): IP2X
  • Primary voltage 4 (EF007410): 385 V
  • Primary voltage 5 (EF007411): 400 V
  • Built as safety transformer (EF007235): Yes
  • Rated apparent power (EF008864): 250 VA
  • Primary voltage 6 (EF007412): 415 V
  • Primary voltage 3 (EF006127): 245 V
  • Secondary voltage 1 (EF007472): 24 V
  • Relative short circuit voltage (EF007452): 6.09 %
  • Secondary voltage 2 (EF007474): 48 V
  • Type of insulation material according to IEC 85 (EF007299): B
  • Short-circuit-proof (EF007332): No

More info

▲
IP2x or xxB up to 400VA IP xxA above 400VA - IK 04 Conform to IEC/EN 61558-2-2 and 2-4 or 2-6 UL506 and CSA C22-2-No66 Products suitable for building into equipment conforming to EN 61131-2, EN 60204-1 and EN 60439-1 standards Insulated covers up to 1000VA provided Interference/disturbance filter included Screw fix to mounting plate or clip on to DIN rail up to 250VA Supplied with 0V/Earth connection link up to 1000VA
Built as safety transformerYes
Built as isolating transformerYes
Built as energy saving transformerNo
Primary voltage 1215-215 V
Primary voltage 2230-230 V
Primary voltage 3245-245 V
Primary voltage 4385-385 V
Primary voltage 5400-400 V
Primary voltage 6415-415 V
Secondary voltage 124-24 V
Secondary voltage 248-48 V
Rated apparent power250 VA
Type of insulation material according to IEC 85B
Short-circuit-proofNo
Relative short circuit voltage6.09 %
Width106 mm
Height123 mm
Depth115 mm
Degree of protection (IP)IP2X
Ring coreNo
Suitable for mounting on PCBNo
Suitable for distribution boardYes
degree of impact strength (IK)IK04
Voltage typeAC
Terminal marking indicationYes
Connection typeScrewed terminal

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
