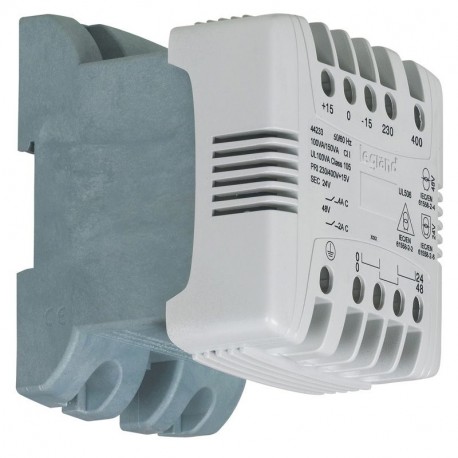

044232 LEGRAND TRANSF 230-400V/24-48V 63VA
044232
044232
LEGRAND
1 Pcs.
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 044232 transf is a safety-certified isolating transformer utilized in electrical cabinets to power low-voltage control systems, signalling components, and machine interfaces securely. These devices protect operators and downstream electronics by providing isolated secondary outputs with defined voltage configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Primary voltage 2 (EF006126): 230 V
- Built as isolating transformer (EF007238): Yes
- Height (EF000040): 85 mm
- Primary voltage 1 (EF006125): 215 V
- Degree of protection (IP) (EF005474): IP2X
- Primary voltage 4 (EF007410): 385 V
- Primary voltage 5 (EF007411): 400 V
- Built as safety transformer (EF007235): Yes
- Rated apparent power (EF008864): 63 VA
- Primary voltage 6 (EF007412): 415 V
- Primary voltage 3 (EF006127): 245 V
- Secondary voltage 1 (EF007472): 24 V
- Relative short circuit voltage (EF007452): 9.01 %
- Secondary voltage 2 (EF007474): 48 V
- Type of insulation material according to IEC 85 (EF007299): B
- Short-circuit-proof (EF007332): No
More info
▲| Built as safety transformer | Yes |
|---|---|
| Built as isolating transformer | Yes |
| Built as energy saving transformer | No |
| Primary voltage 1 | 215-215 V |
| Primary voltage 2 | 230-230 V |
| Primary voltage 3 | 245-245 V |
| Primary voltage 4 | 385-385 V |
| Primary voltage 5 | 400-400 V |
| Primary voltage 6 | 415-415 V |
| Secondary voltage 1 | 24-24 V |
| Secondary voltage 2 | 48-48 V |
| Rated apparent power | 63 VA |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
|---|---|
| Relative short circuit voltage | 9.01 % |
| Width | 94 mm |
| Height | 85 mm |
| Depth | 113 mm |
| Degree of protection (IP) | IP2X |
| Ring core | No |
| Suitable for mounting on PCB | No |
| Suitable for distribution board | Yes |
| degree of impact strength (IK) | IK04 |
| Voltage type | AC |
| Terminal marking indication | Yes |
| Connection type | Screwed terminal |
