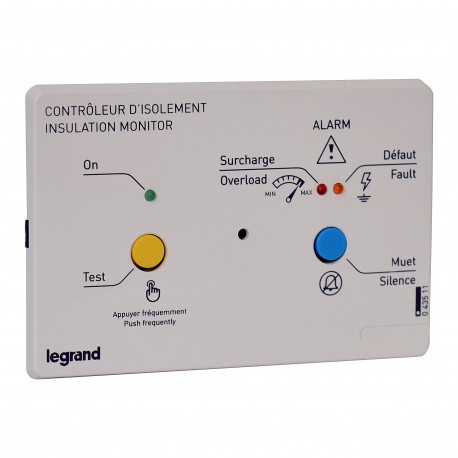

043511 LEGRAND STATUS REPORT MURAL ICC
043511
043511
LEGRAND
1 Pcs.
Automation > Insulation and earth fault monitoring relay
SUPERVISION AND ENERGY MEASUREMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Legrand 043511 status report mural ICC unit provides centralized status indication and monitoring integration for critical healthcare or industrial facility electrical architectures. System integrators deploy status panels like this to give operators immediate visual feedback on the health of isolated power systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (EF000040): 81 mm
- With detachable clamps (EF003340): No
- Type of electric connection (EF003961): Screw connection
- Depth (EF000049): 59 mm
- Width (EF000008): 120 mm
More info
▲- Pack (number of units)1
- Volume (dm3)1.554
- Weight (g)200.00
- Connected to the IMD unit with cable Cat.No 3 369 04 for alarm report
- LED indicator and audible signal for the state of IT network
- STOP button for audible signal
- TEST button for insulation monitoring in compliance with IEC 60364-7-710 standard
- Up to 5 remote panels per IMD
- Manual addressing (using dip switches)
- Supplied with flush-mounting box for masonry
- Can also be installed in flush-mounting box for dry partitions Cat.No PB503
- 3 x 22.5 mm modules
- 230 V or 24 V~
- Used to permanently monitor the insulation level of the IT earthing system, in compliance with installation standard IEC 60364-7-710 (Group 2 hospitals)
