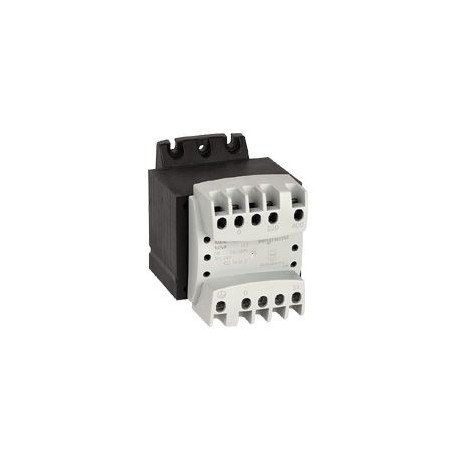

042873 LEGRAND TRANSFO.EQUIP.2X24V 160VA
042873
042873
LEGRAND
1 Pcs.
TRANSFO.EQUIP.2X24V 160VA
Legrand Safety Isolating Transformer Single Phase 230/400V 24/48V 160VA
Transformer secondary equipment/separate. mono - prim 230/400V/sec 24/48V - 160VA
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Isolating and safety isolating less than 50V transformers Designed to meet the needs of users with specific VA ratings such as original equipment manufacturers The terminals are designed to provide easy and quick connections Transformers up to 160VA can be clipped to 4 rail using accessory or directly fixed using screws through the easily accessible fixing points Multiple fixing possibilities: - clip to DIN rail using Cat. No. 0044 16 or 0428 99 (160VA) - screw directly on to Lina 12.5 or Lina 25 mounting plate (220VA) Recommended protection: * for 40 and 63 VA: Type T fuses (5x20) time delay fuse to IEC 60127 * for greater than 100VA use MCB Type C
| Built as safety transformer | Yes |
|---|---|
| Built as isolating transformer | No |
| Built as energy saving transformer | No |
| Primary voltage 1 | 230-230 V |
| Primary voltage 2 | 400-400 V |
| Secondary voltage 1 | 24-24 V |
| Secondary voltage 2 | 48-48 V |
| Rated apparent power | 160 VA |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
|---|---|
| Relative short circuit voltage | 7.4 % |
| Width | 84 mm |
| Height | 104 mm |
| Depth | 98 mm |
| Degree of protection (IP) | IP2X |
| Ring core | No |
| Suitable for mounting on PCB | No |
| Suitable for distribution board | Yes |
| Feature Name | Feature Value |
|---|---|
| Primary voltage 2 (EF006126) | 400 V |
| Built as isolating transformer (EF007238) | No |
| Height (EF000040) | 104 mm |
| Primary voltage 1 (EF006125) | 230 V |
| Degree of protection (IP) (EF005474) | IP2X |
| Built as safety transformer (EF007235) | Yes |
| Rated apparent power (EF008864) | 160 VA |
| Secondary voltage 1 (EF007472) | 24 V |
| Relative short circuit voltage (EF007452) | 7.4 % |
| Secondary voltage 2 (EF007474) | 48 V |
| Type of insulation material according to IEC 85 (EF007299) | B |
| Short-circuit-proof (EF007332) | No |
| Modular version (EF001126) | Yes |
| Suitable for mounting on PCB (EF006157) | No |
| Built as energy saving transformer (EF007005) | No |
| Ring core (EF006170) | No |
| Depth (EF000049) | 98 mm |
| Width (EF000008) | 84 mm |
