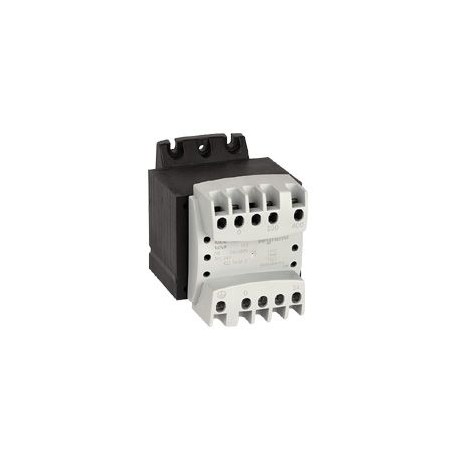

042870 LEGRAND TRANSFO.EQUIP.2X24V 40VA
042870
042870
LEGRAND
1 Pcs.
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 042870 transfo.equip.2x24v 40va is an equipment transformer designed to step down voltage levels within industrial control panels and auxiliary circuits. Transformers of this class ensure safe operational voltages for instrumentation, control gear, and low-voltage accessories by providing reliable electromagnetic isolation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Primary voltage 2 (EF006126): 400 V
- Built as isolating transformer (EF007238): No
- Height (EF000040): 77 mm
- Primary voltage 1 (EF006125): 230 V
- Degree of protection (IP) (EF005474): IP2X
- Built as safety transformer (EF007235): Yes
- Rated apparent power (EF008864): 40 VA
- Secondary voltage 1 (EF007472): 24 V
- Relative short circuit voltage (EF007452): 6.1 %
- Secondary voltage 2 (EF007474): 48 V
- Type of insulation material according to IEC 85 (EF007299): B
- Short-circuit-proof (EF007332): No
- Modular version (EF001126): Yes
- Suitable for mounting on PCB (EF006157): No
- Built as energy saving transformer (EF007005): No
- Ring core (EF006170): No
More info
▲| Built as safety transformer | Yes |
|---|---|
| Built as isolating transformer | No |
| Built as energy saving transformer | No |
| Primary voltage 1 | 230-230 V |
| Primary voltage 2 | 400-400 V |
| Secondary voltage 1 | 24-24 V |
| Secondary voltage 2 | 48-48 V |
| Rated apparent power | 40 VA |
| Type of insulation material according to IEC 85 | B |
| Short-circuit-proof | No |
|---|---|
| Relative short circuit voltage | 6.1 % |
| Width | 84 mm |
| Height | 77 mm |
| Depth | 98 mm |
| Degree of protection (IP) | IP2X |
| Ring core | No |
| Suitable for mounting on PCB | No |
| Suitable for distribution board | Yes |
