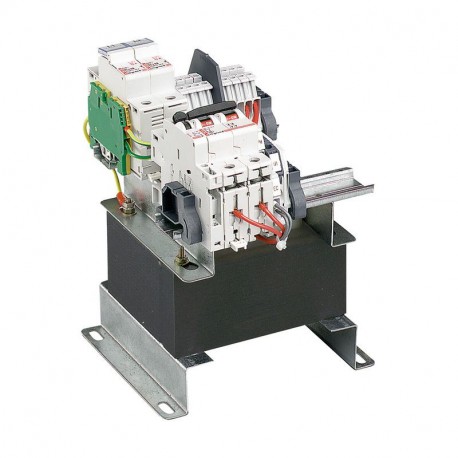

042664 LEGRAND TRNSF.CNOMO 230/24-48 250VA

042664

042664

LEGRAND

1 Pcs.

TRNSF.CNOMO 230/24-48 250VA Transformer CNOMO TDCE version I - prim 230/400 V/sec 24-48 V - 250 VA CNOMO TDCE Transformer version I - prim 230/400V/sec 24 - 48V - 250VA

Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand CNOMO transformer 042664 is an electromagnetic unit built to provide specific secondary voltages for machine tools and automation machinery. This safety-compliant device ensures proper voltage matching and circuit separation inside electrical control cabinets.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Primary voltage 2 (EF006126): 230 V
  • Built as isolating transformer (EF007238): No
  • Height (EF000040): 200 mm
  • Primary voltage 1 (EF006125): 215 V
  • Degree of protection (IP) (EF005474): IP20
  • Primary voltage 4 (EF007410): 385 V
  • Primary voltage 5 (EF007411): 400 V
  • Built as safety transformer (EF007235): Yes
  • Rated apparent power (EF008864): 250 VA
  • Primary voltage 6 (EF007412): 415 V
  • Primary voltage 3 (EF006127): 245 V
  • Secondary voltage 1 (EF007472): 24 V
  • Relative short circuit voltage (EF007452): 4.4 %
  • Secondary voltage 2 (EF007474): 48 V
  • Type of insulation material according to IEC 85 (EF007299): B
  • Short-circuit-proof (EF007332): Yes

More info

▲

Product features

For control circuit - an electrostatic shield (Version II) or 2-electrostatic screens (Version I)Primary: 230-400 V ± 15 V -Secondary: 24 V (Version II) or 24 to 48 V (Version I) - 48 V by coupling 2 x 24 V (Version I) Version I: - Power: 250 VA - PIA cos phi = 0,5: 750 VA - Gauge-circuit breaker protection for the secondary Version I: 6 A - Number of circuits provided: 2

General characteristics

Transformers - CNOMO - TDCE versions I and II - Meet the standard CNOMO E-03 22 210G version January 2007 - complies with the standards IEC en 61558-2-2, 2-4 to 2 x 115 V and IEC en 61558-2-6 24 V - secondary Protection version II: circuit breaker circuit breaker curve C for 100 and 160 VA, D curve from 250 to 1600 VA - Protection circuits use: intended location (except 100 VA) for assembly by the user of circuit breakers residual current protection single-pole + neutral, curve C with auxiliary contact investor

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
