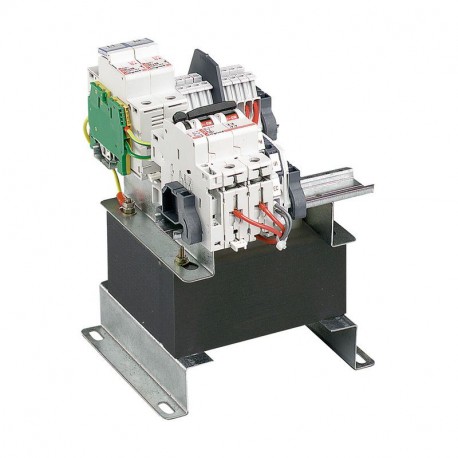

042638 LEGRAND TRNSF.CNOMO 230/115-220 1600VA
042638
042638
LEGRAND
1 Pcs.
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand 042638 industrial transformer is manufactured to convert supply voltages for machine tool control circuits in compliance with CNOMO standards. These units feature short-circuit protection and robust insulation to guarantee continuous operation and operator safety within automated manufacturing cells. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Primary voltage 2 (EF006126): 230 V
- Built as isolating transformer (EF007238): Yes
- Height (EF000040): 250 mm
- Primary voltage 1 (EF006125): 215 V
- Degree of protection (IP) (EF005474): IP20
- Primary voltage 4 (EF007410): 385 V
- Primary voltage 5 (EF007411): 400 V
- Built as safety transformer (EF007235): No
- Rated apparent power (EF008864): 1600 VA
- Primary voltage 6 (EF007412): 415 V
- Primary voltage 3 (EF006127): 245 V
- Secondary voltage 1 (EF007472): 115 V
- Relative short circuit voltage (EF007452): 2.7 %
- Secondary voltage 2 (EF007474): 230 V
- Type of insulation material according to IEC 85 (EF007299): B
- Short-circuit-proof (EF007332): Yes
