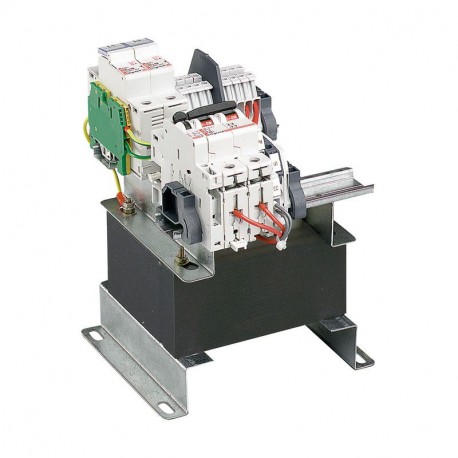

042635 LEGRAND TRANSFO CNOMO TDCE 400VA 2X110
042635
042635
LEGRAND
1 Pcs.
TRANSFO CNOMO TDCE 400VA 2X110
CNOMO TDCE Transformer version I - prim 230 - 400V/sec 115 or 230V - 400VA
Automation > One-phase control transformer
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
For control circuit - With an electrostatic screen (Version II) or 2 electrostatic screens (Version I) Primary: 230-400V ± 15V -Secondary: 115V or 230V - 230V by coupling 2x115V - Version I: - Power: 400VA - PIA of cos phi = 0.5 - Gauge of the secondary protection circuit breaker: 2A - Number of planned circuits: 3
| Executed as a safety transformer | No |
|---|---|
| Executed as a separation transformer | Yes |
| Executed as a savings transformer | No |
| Primary Voltage 1 (Min-Max) | 215-215 V |
| Primary Voltage 2 (Min-Max) | 230-230 V |
| Primary voltage 3 (Min-Max) | 245-245 V |
| Primary Voltage 4 (Min-Max) | 385-385 V |
| Primary voltage 5 (Min-Max) | 400-400 V |
| Primary Voltage 6 (Min-Max) | 415-415 V |
| Secondary Voltage 1 (Min-Max) | 115-115 V |
| Secondary Voltage 2 (Min-Max) | 230-230 V |
| Nominal apparent power | 400 VA |
|---|---|
| Type of insulation material according to IEC 85 | B |
| Short Circuit Protection | Yes |
| Relative Short-Circuit Voltage Uk | 4 % |
| Width | 183 mm |
| Height | 192 mm |
| Depth | 190 mm |
| Protection Class (IP) | IP20 |
| Annular core | No |
| Suitable for PCB mounting | No |
| Suitable for series installation | No |
| Feature Name | Feature Value |
|---|---|
| Primary voltage 2 (EF006126) | 230 V |
| Built as isolating transformer (EF007238) | Yes |
| Height (EF000040) | 192 mm |
| Primary voltage 1 (EF006125) | 215 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Primary voltage 4 (EF007410) | 385 V |
| Primary voltage 5 (EF007411) | 400 V |
| Built as safety transformer (EF007235) | No |
| Rated apparent power (EF008864) | 400 VA |
| Primary voltage 6 (EF007412) | 415 V |
| Primary voltage 3 (EF006127) | 245 V |
| Secondary voltage 1 (EF007472) | 115 V |
| Relative short circuit voltage (EF007452) | 4 % |
| Secondary voltage 2 (EF007474) | 230 V |
| Type of insulation material according to IEC 85 (EF007299) | B |
| Short-circuit-proof (EF007332) | Yes |
| Modular version (EF001126) | No |
| Suitable for mounting on PCB (EF006157) | No |
| Built as energy saving transformer (EF007005) | No |
| Ring core (EF006170) | No |
| Depth (EF000049) | 190 mm |
| Width (EF000008) | 183 mm |
