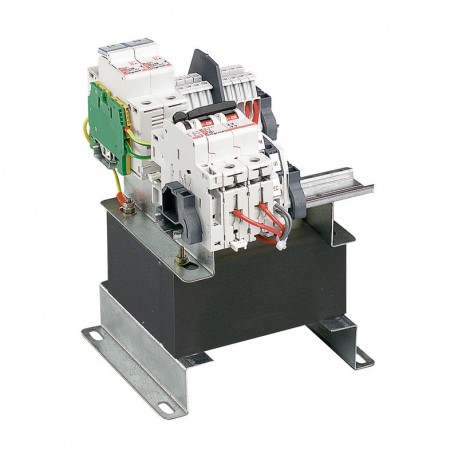

042632 LEGRAND TRNSF.CNOMO 230/115-220 100VA
042632
042632
LEGRAND
1 Pcs.
TRNSF.CNOMO 230/115-220 100VA
Transformer CNOMO TDCE version I - prim 230/400 V/sec 115 or 230 V - 100 VA
CNOMO TDCE Transformer Version I - prim 230/400V/sec 115 or 230V - 100VA
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
For control circuit - an electrostatic shield (Version II) or 2-electrostatic screens (Version I) Primary: 230-400 V ± 15 V -Secondary: 115 V or 230 V - 230 V by coupling 2 x 115 V - Version I: - Power: 100 VA - PIA cos phi = 0,5: 300 VA - Gauge-circuit breaker protection secondary: 0.5 A - Number of circuits planned: 1General characteristics
Transformers - CNOMO - TDCE versions I and II - Meet the standard CNOMO E-03 22 210G version January 2007 - complies with the standards IEC en 61558-2-2, 2-4 to 2 x 115 V and IEC en 61558-2-6 24 V - secondary Protection version II: circuit breaker circuit breaker curve C for 100 and 160 VA, D curve from 250 to 1600 VA - Protection circuits use: intended location (except 100 VA) for assembly by the user of circuit breakers residual current protection single-pole + neutral, curve C with auxiliary contact investor| Feature Name | Feature Value |
|---|---|
| Primary voltage 2 (EF006126) | 230 V |
| Built as isolating transformer (EF007238) | Yes |
| Height (EF000040) | 185 mm |
| Primary voltage 1 (EF006125) | 215 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Primary voltage 4 (EF007410) | 385 V |
| Primary voltage 5 (EF007411) | 400 V |
| Built as safety transformer (EF007235) | No |
| Rated apparent power (EF008864) | 100 VA |
| Primary voltage 6 (EF007412) | 415 V |
| Primary voltage 3 (EF006127) | 245 V |
| Secondary voltage 1 (EF007472) | 115 V |
| Relative short circuit voltage (EF007452) | 4.5 % |
| Secondary voltage 2 (EF007474) | 230 V |
| Type of insulation material according to IEC 85 (EF007299) | B |
| Short-circuit-proof (EF007332) | Yes |
| Modular version (EF001126) | No |
| Suitable for mounting on PCB (EF006157) | No |
| Built as energy saving transformer (EF007005) | No |
| Ring core (EF006170) | No |
| Depth (EF000049) | 170 mm |
| Width (EF000008) | 145 mm |
