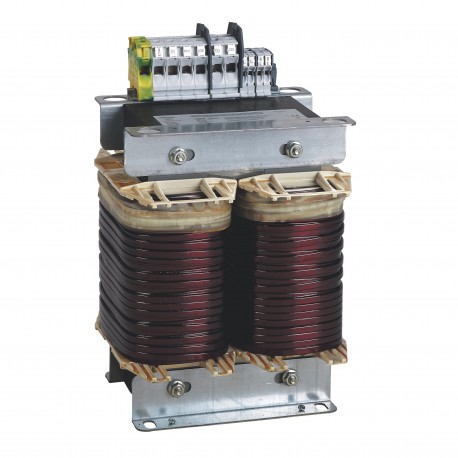

LEGRAND 042594 042594 LEGRAND TRANSFO HOSP MONOF 6,3 KVA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

042594 LEGRAND TRANSFO HOSP MONOF 6,3 KVA

042594

042594

LEGRAND

1 Pcs.

TRANSFO HOSP MONOF 6,3 KVA Isolating transfo for hospitals - IP 00 -1 phase- prim 230 V / sec 230 V -output 6.3 kVA Circuit Separation Transformer for Hospital Uses - 6.3kVA

Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered by Legrand under part number 042594, this high-capacity isolating transformer provides secure electrical separation for critical infrastructure applications such as medical environments. Isolating transformers safeguard sensitive equipment and personnel against ground faults. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Built as isolating transformer (EF007238): Yes
  • Height (EF000040): 390 mm
  • Primary voltage 1 (EF006125): 230 V
  • Degree of protection (IP) (EF005474): IP00
  • Built as safety transformer (EF007235): No
  • Rated apparent power (EF008864): 6300 VA
  • Secondary voltage 1 (EF007472): 230 V
  • Relative short circuit voltage (EF007452): 2.8 %
  • Type of insulation material according to IEC 85 (EF007299): H
  • Short-circuit-proof (EF007332): No
  • Modular version (EF001126): No
  • Suitable for mounting on PCB (EF006157): No
  • Built as energy saving transformer (EF007005): No
  • Ring core (EF006170): No
  • Depth (EF000049): 250 mm
  • Width (EF000008): 240 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)67.551
  • Weight (g)58 000.00
Product characteristics
Single-phase
Primary: 230 V~ / Secondary: 230 V~ with centre tap
  • Equipped with two temperature monitoring systems (bi-metal strips and thermocouple PT 100), making them compatible with any medical control system
  • IP 00
  • Output : 6.3 kVA
  • Terminal primary flexible cable : 35 mm²
  • Terminal secondary flexible cable : 35 mm²
General characteristics
Isolating transformers for hospitals
  • Conform to standard IEC EN 61558-2-15
  • The main requirements of this standard, additionally to IEC 61558-2-4, concern:
    • secondary/earth leakage current, limited to 0.5 mA off-load
    • inrush current, limited to 12 times the peak value of primary current
  • Electrostatic shield linked to dedicated terminal
  • Equipped with a temperature monitoring system, and outputs on dedicated terminals
