View larger
Images are for illustrative purposes only. Please refer to data sheet for details

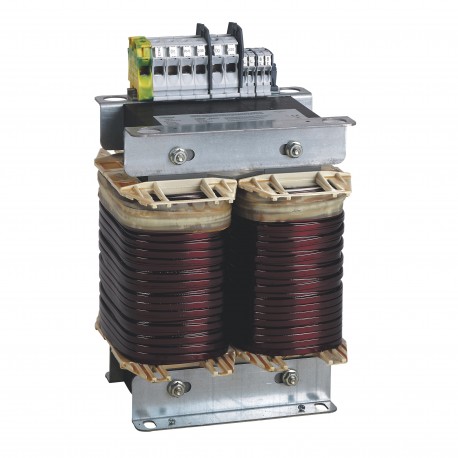

042593 LEGRAND TRANSFO HOSP MONOF 5 KVA
042593
042593
LEGRAND
1 Pcs.
TRANSFO HOSP MONOF 5 KVA
Isolating transfo for hospitals - IP 00 -1 phase- prim 230 V / sec 230 V -output 5 kVA
Circuit Separation Transformer for Hospital Applications - 5kVA
Automation > One-phase control transformer
ACCESSORIES CONTROL AND CONTROL PANELS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)67.551
- Weight (g)57 900.00
Product characteristics
Single-phasePrimary: 230 V~ / Secondary: 230 V~ with centre tap
- Equipped with two temperature monitoring systems (bi-metal strips and thermocouple PT 100), making them compatible with any medical control system
- IP 00
- Output : 5 kVA
- Terminal primary flexible cable : 35 mm²
- Terminal secondary flexible cable : 35 mm²
General characteristics
Isolating transformers for hospitals- Conform to standard IEC EN 61558-2-15
- The main requirements of this standard, additionally to IEC 61558-2-4, concern:
- secondary/earth leakage current, limited to 0.5 mA off-load
- inrush current, limited to 12 times the peak value of primary current
- Electrostatic shield linked to dedicated terminal
- Equipped with a temperature monitoring system, and outputs on dedicated terminals
| Feature Name | Feature Value |
|---|---|
| Built as isolating transformer (EF007238) | Yes |
| Height (EF000040) | 390 mm |
| Primary voltage 1 (EF006125) | 230 V |
| Degree of protection (IP) (EF005474) | IP00 |
| Built as safety transformer (EF007235) | No |
| Rated apparent power (EF008864) | 5000 VA |
| Secondary voltage 1 (EF007472) | 230 V |
| Relative short circuit voltage (EF007452) | 3.1 % |
| Type of insulation material according to IEC 85 (EF007299) | H |
| Short-circuit-proof (EF007332) | No |
| Modular version (EF001126) | No |
| Suitable for mounting on PCB (EF006157) | No |
| Built as energy saving transformer (EF007005) | No |
| Ring core (EF006170) | No |
| Depth (EF000049) | 250 mm |
| Width (EF000008) | 240 mm |
