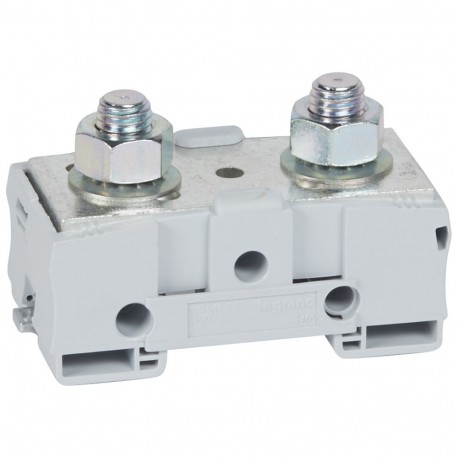

LEGRAND 039074 039074 LEGRAND BLOCK POWER 240MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

039074 LEGRAND BLOCK POWER 240MM2

039074

039074

LEGRAND

30 Pcs.

BLOCK POWER 240MM2 Viking 3 Heavy Duty Terminal Block Symmetrical DIN Rail Mounting 240mm² Copper Bar/Cable Lug 46mm Viking 3 power terminal - symmetrical rails - M12 - pitch 46 - L35mm

Automation > (Knife) disconnect terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A robust power block, this 039074 LEGRAND BLOCK POWER 240MM2 unit handles heavy-duty electrical distribution requirements within high-capacity industrial switchgear and machinery. Power terminal blocks provide secure termination points for large-diameter cables, ensuring safe and reliable transmission of high currents.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 1
  • Internally connected stages (EF002661): No
  • Height (EF000040): 64 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Operating temperature (EF002393): -5 °C
  • Closing plate required (EF002525): No
  • Depth (EF000049): 86 mm
  • Type of electrical connection 1 (EF002526): Bolt connection
  • Colour (EF000007): Grey
  • Rated voltage (EF000228): 1000 V
  • Width (EF000008): 46 mm
  • Number of levels (EF002659): 1
  • Type of electrical connection 2 (EF002527): Bolt connection

More info

▲
Heavy duty terminal blocks For copper bars or cable lugs Conform to IEC EN 60947-7-1 Fire resistance: 960°C, IEC EN 60695-2-11 V2 according to UL94 Insulaing material: polyamide -30°C to +100°C Bridging the gap between the enclosure and external cables Plastic foot For use with terminal marker sheets For symmetrical rails Fixed using metal clip on rails 15mm depth and EN 60715, 15mm depth
Connectable conductor cross section fine-strand without cable end sleeve240-240 mm²
Rated voltage1000 V
Type of electrical connection 1Bolt connection
Type of electrical connection 2Bolt connection
Number of levels1
Number of clamp positions per level1
Internally connected stagesNo
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-40 °C
Width46 mm
Height64 mm
Depth86 mm
Closing plate requiredNo
ColourGrey
Inflammability class of insulation material according to UL 94V2
