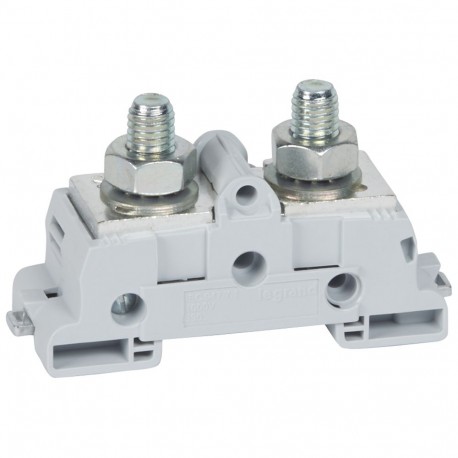

039073 LEGRAND BLOCK POWER 120MM2
039073
039073
LEGRAND
5 Pcs.
Automation > (Knife) disconnect terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A heavy-duty power block like the Legrand 039073 accommodates large conductor cross-sections to distribute high electrical currents within industrial power distribution architectures. Bolt-connection terminal blocks provide secure, high-torque clamping for heavy feeders and main incoming power lines inside switchboards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 1
- Internally connected stages (EF002661): No
- Height (EF000040): 61 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Operating temperature (EF002393): -5 °C
- Closing plate required (EF002525): No
- Depth (EF000049): 84 mm
- Type of electrical connection 1 (EF002526): Bolt connection
- Colour (EF000007): Grey
- Rated voltage (EF000228): 1000 V
- Width (EF000008): 34 mm
- Number of levels (EF002659): 1
- Type of electrical connection 2 (EF002527): Bolt connection
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 120-120 mm² |
|---|---|
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Bolt connection |
| Type of electrical connection 2 | Bolt connection |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 34 mm |
| Height | 61 mm |
| Depth | 84 mm |
| Closing plate required | No |
| Colour | Grey |
| Inflammability class of insulation material according to UL 94 | V2 |
