View larger
Images are for illustrative purposes only. Please refer to data sheet for details

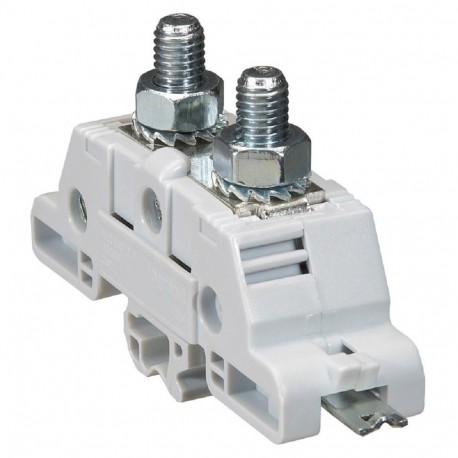

039031 LEGRAND B SPLICE PLATE 15-M8
039031
039031
LEGRAND
5 Pcs.
B SPLICE PLATE 15-M8
Viking 3 Heavy Duty Terminal Block Asymmetrical DIN Rail Mounting 35mm² Copper Bar/Cable Lug 26mm
Power terminal block with Viking 3 ranges for bus/terminal - M8 - step 26
Automation > (Knife) disconnect terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Heavy duty terminal blocks For copper bars or cable lugs Conform to IEC EN 60947-7-1 Fire resistance: 960°C, IEC EN 60695-2-11 V2 according to UL94 Insulaing material: polyamide -30°C to +100°C Bridging the gap between the enclosure and external cables Plastic foot For use with terminal marker sheets For asymmetrical rails Fixed using metal clip on rails EN 60715
| Connectable conductor cross section fine-strand without cable end sleeve | 35-35 mm² |
|---|---|
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Bolt connection |
| Type of electrical connection 2 | Bolt connection |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Mounting method | G-rail |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 26 mm |
| Height | 56 mm |
| Depth | 84 mm |
| Closing plate required | No |
| Colour | Grey |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 1 |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 56 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | G-rail |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 35 mm² |
| Operating temperature (EF002393) | -5 °C |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 84 mm |
| Type of electrical connection 1 (EF002526) | Bolt connection |
| Colour (EF000007) | Grey |
| Rated voltage (EF000228) | 1000 V |
| Width (EF000008) | 26 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Bolt connection |
