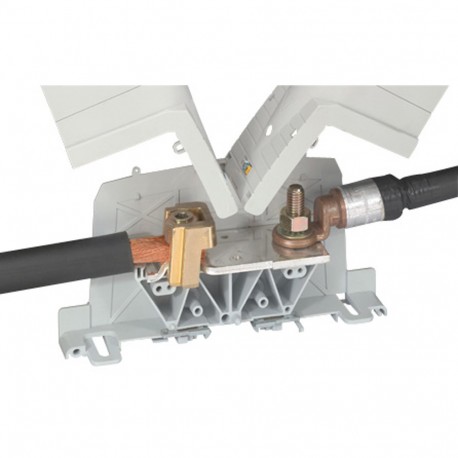

LEGRAND 039021 039021 LEGRAND B. SPLICE CABLE-PLET 300-300 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

039021 LEGRAND B. SPLICE CABLE-PLET 300-300

039021

039021

LEGRAND

5 Pcs.

B. SPLICE CABLE-PLET 300-300 Power terminal block Viking 3 - cable-cable lug - pitch 55 Viking 3 power terminal block - cable - range - step 55

Automation > (Knife) disconnect terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed as a b. splice cable-plet 300-300, the Legrand 039021 provides heavy-duty conductor splicing and high-capacity electrical distribution for industrial environments. Heavy-duty splice blocks ensure secure joining of large cables while maintaining structural and thermal integrity under significant electrical loads. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of clamp positions per level (EF002660): 1
  • Connectable conductor cross section solid-core (EF007337): 70 mm²
  • Internally connected stages (EF002661): No
  • Height (EF000040): 113.5 mm
  • Material insulation body (EF007543): Thermoplastic
  • Mounting method (EF000003): DIN rail (top hat rail) 35 mm
  • Connectable conductor cross section multi-wired (EF007343): 70 mm²
  • Operating temperature (EF002393): -5 °C
  • Rated current In (EF008250): 570 A
  • With integrated test socket (EF002547): Yes
  • Closing plate required (EF002525): No
  • Depth (EF000049): 337 mm
  • Type of electrical connection 1 (EF002526): Screw connection
  • Colour (EF000007): Grey
  • Type of slitting (EF002545): Swivelling
  • Rated voltage (EF000228): 1000 V

More info

▲
  • Pack (number of units)5
  • Volume (dm3)12.006
  • Weight (g)5 152.00
Product characteristics
Insulated aluminium/copper power terminal blocks
  • For aluminium/copper cables, copper bars or cable lugs
  • Direct connection of cable
  • Insulation and protection against direct contact without additional accessories (built-in dividers and covers)
  • Pre-cut removable covers for adjustment to the various connection modes
  • Fixed using metal clip for rails 15 mm depth and EN 60715 15 mm depth, or on plate with screws
  • Permits the use of Cab 3, Duplix markers
  • Test via test plug closed covers
  • Blocks with identical pitch can be joined using a threaded rod
  • Shunting possible with Cat.Nos 0 394 46/47
Cable - cable lug
  • Rigid or flexible cable : Al/Cu 70 to 300 mm²
  • Rigid or flexible cable : Al/Cu 300 mm²
  • Pitch : 55 mm
General characteristics
Viking™ 3 power terminal blocks
  • Bridging the gap between the enclosure and external cables
