View larger
Images are for illustrative purposes only. Please refer to data sheet for details

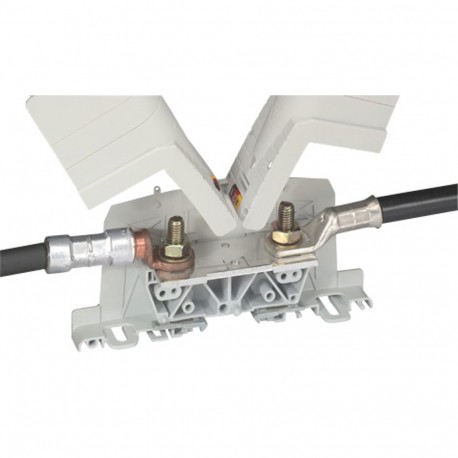

039014 LEGRAND B. SPLICE PLET-PLET 150-150
039014
039014
LEGRAND
5 Pcs.
B. SPLICE PLET-PLET 150-150
Viking 3 Heavy Duty Terminal Block 150mm² Cable Lug to Cable Lug 42mm
Viking 3 power terminal - Connection - step 42
Automation > (Knife) disconnect terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Heavy duty terminal blocks For copper and aluminium cables IK 04 Conform to IEC 60947-7-1, EN 60947-7-1 UL 1059 and 486 E - CSA 22-2 Fire resistant IEC 60695-2-11: 960°C (except cover) V2 according to UL 94 Bridging the gap between the enclosure and external cables Fixed using metal clip for rails 15mm depth and EN 60715, 15mm depth or on plate with screws Fitted with hinged covers with cut-outs Permits the use of CAB 3 markers Test via test plug _4 closed covers Blocks with identical width can be joined using a threaded rod Supports shunt with Cat. Nos. 0394 46/47
| Connectable conductor cross section fine-strand without cable end sleeve | 150-150 mm² |
|---|---|
| Rated current In | 415 A |
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Bolt connection |
| Type of electrical connection 2 | Bolt connection |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
| Operating temperature | -5-40 °C |
|---|---|
| Width | 42 mm |
| Height | 89.5 mm |
| Depth | 296 mm |
| Closing plate required | No |
| Colour | Grey |
| Type of slitting | Swivelling |
| With integrated test socket | Yes |
| Inflammability class of insulation material according to UL 94 | V2 |
| Feature Name | Feature Value |
|---|---|
| Number of clamp positions per level (EF002660) | 1 |
| Internally connected stages (EF002661) | No |
| Height (EF000040) | 89.5 mm |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Material insulation body (EF007543) | Thermoplastic |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 150 mm² |
| Operating temperature (EF002393) | -5 °C |
| Rated current In (EF008250) | 415 A |
| With integrated test socket (EF002547) | Yes |
| Closing plate required (EF002525) | No |
| Depth (EF000049) | 296 mm |
| Type of electrical connection 1 (EF002526) | Bolt connection |
| Colour (EF000007) | Grey |
| Type of slitting (EF002545) | Swivelling |
| Rated voltage (EF000228) | 1000 V |
| Width (EF000008) | 42 mm |
| Number of levels (EF002659) | 1 |
| Type of electrical connection 2 (EF002527) | Bolt connection |
