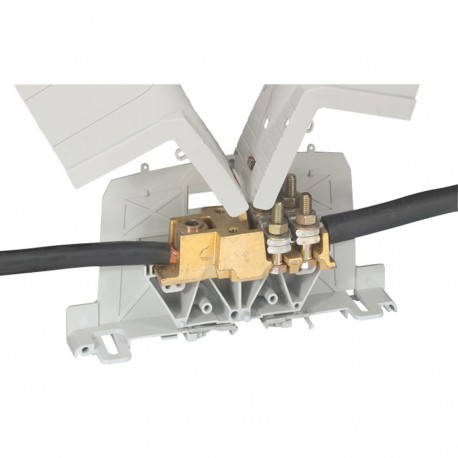

039010 LEGRAND B. SPLICE CABLE-CABLE 120-70
039010
039010
LEGRAND
5 Pcs.
Automation > (Knife) disconnect terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Organizing and securing large power cables inside heavy industrial control cabinets is streamlined with the Legrand 039010 b. splice cable-cable 120-70. Electrical professionals use these robust connection blocks to maintain orderly, high-current pathways while ensuring reliable mechanical and electrical continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of clamp positions per level (EF002660): 1
- Connectable conductor cross section solid-core (EF007337): 35 mm²
- Internally connected stages (EF002661): No
- Height (EF000040): 89.5 mm
- Material insulation body (EF007543): Thermoplastic
- Mounting method (EF000003): DIN rail (top hat rail) 35 mm
- Connectable conductor cross section multi-wired (EF007343): 35 mm²
- Operating temperature (EF002393): -5 °C
- Rated current In (EF008250): 250 A
- With integrated test socket (EF002547): Yes
- Closing plate required (EF002525): No
- Depth (EF000049): 296 mm
- Type of electrical connection 1 (EF002526): Screw connection
- Colour (EF000007): Grey
- Type of slitting (EF002545): Swivelling
- Rated voltage (EF000228): 1000 V
More info
▲| Connectable conductor cross section fine-strand without cable end sleeve | 35-120 mm² |
|---|---|
| Connectable conductor cross section solid-core | 35-120 mm² |
| Connectable conductor cross section multi-wired | 35-120 mm² |
| Rated current In | 250 A |
| Rated voltage | 1000 V |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Number of levels | 1 |
| Number of clamp positions per level | 1 |
| Internally connected stages | No |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Material insulation body | Thermoplastic |
|---|---|
| Operating temperature | -5-40 °C |
| Width | 42 mm |
| Height | 89.5 mm |
| Depth | 296 mm |
| Closing plate required | No |
| Colour | Grey |
| Type of slitting | Swivelling |
| With integrated test socket | Yes |
| Inflammability class of insulation material according to UL 94 | V2 |
