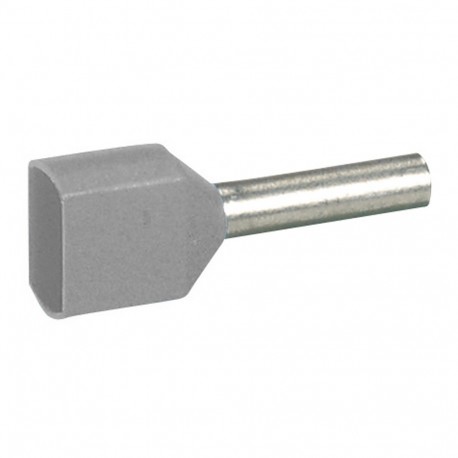

LEGRAND 037690 037690 LEGRAND CAP-TOE DOUBLE-2X2,5 STARFIX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037690 LEGRAND CAP-TOE DOUBLE-2X2,5 STARFIX

037690

037690

LEGRAND

500 Pcs.

CAP-TOE DOUBLE-2X2,5 STARFIX Starfix Insulating Flange Double Ferrule 2 x 2.5mm² Grey Starfix wiring ferrules for section conductors - 2x2.5mm² - Gray

Cables > Cable end sleeve
CAB-3 SIGNALERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand twin cable end sleeve (037690) is designed to accept and terminate two separate stranded conductors simultaneously into a single terminal point. Twin wire ferrules are essential for jumper connections and parallel wiring configurations in control cabinets.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material insulation (EF008118): Polypropylene (PP)
  • With identification flag (EF007954): No
  • Material (EF002169): Copper
  • Halogen free (EF000025): Yes
  • Sleeve length (EF000014): 10 mm
  • Nominal cross section (EF001335): 2.5 mm²
  • Surface protection (EF000139): Tinned
  • Colour (EF000007): Grey
  • Reel/roll packaging (EF001714): No
  • For cables resistant to short circuit (EF001713): Yes
  • Insulated (EF000019): Yes
  • Construction type (EF000767): Twin cable end sleeve

More info

▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Individual ferrules - double
Construction typeTwin cable end sleeve
Nominal cross section2.5 mm²
Sleeve length10 mm
InsulatedYes
Material insulationPolypropylene (PP)
Halogen freeYes
ColourGrey
MaterialCopper
Surface protectionTinned
For cables resistant to short circuitYes
With identification flagNo
Reel/roll packagingNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
