View larger
Images are for illustrative purposes only. Please refer to data sheet for details

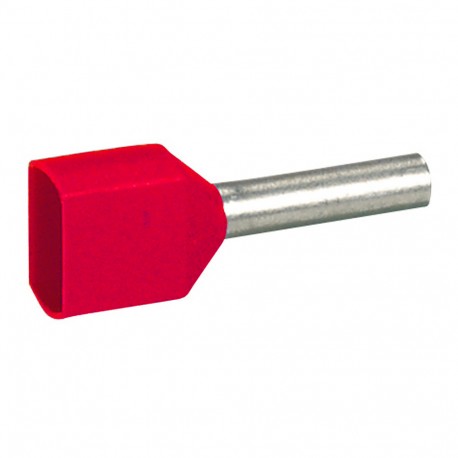

037688 LEGRAND CAP-TOE DOUBLE 2X1 STARFIX
037688
037688
LEGRAND
500 Pcs.
CAP-TOE DOUBLE 2X1 STARFIX
Starfix Insulating Flange Double Ferrule 2 x 1mm² Red
Starfix wiring ferrules for section conductors - 2x1mm² - red
Cables > Cable end sleeve
CAB-3 SIGNALERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Individual ferrules - double
| Construction type | Twin cable end sleeve |
|---|---|
| Nominal cross section | 1 mm² |
| Sleeve length | 8 mm |
| Insulated | Yes |
| Material insulation | Polypropylene (PP) |
| Halogen free | Yes |
| Colour | Red |
|---|---|
| Material | Copper |
| Surface protection | Tinned |
| For cables resistant to short circuit | Yes |
| With identification flag | No |
| Reel/roll packaging | No |
| Feature Name | Feature Value |
|---|---|
| Material insulation (EF008118) | Polypropylene (PP) |
| With identification flag (EF007954) | No |
| Material (EF002169) | Copper |
| Halogen free (EF000025) | Yes |
| Sleeve length (EF000014) | 8 mm |
| Nominal cross section (EF001335) | 1 mm² |
| Surface protection (EF000139) | Tinned |
| Colour (EF000007) | Red |
| Reel/roll packaging (EF001714) | No |
| For cables resistant to short circuit (EF001713) | Yes |
| Insulated (EF000019) | Yes |
| Construction type (EF000767) | Twin cable end sleeve |
