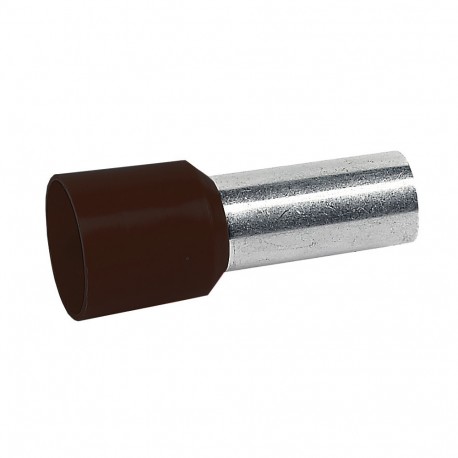

LEGRAND 037671 037671 LEGRAND TOE STARFIX 25 MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037671 LEGRAND TOE STARFIX 25 MM2

037671

037671

LEGRAND

50 Pcs.

TOE STARFIX 25 MM2 Starfix Insulating Flange Single Ferrule 25mm² Black Starfix wiring ferrules for conductors with a 25mm² cross-section - black

Cables > Cable end sleeve
CAB-3 SIGNALERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand ferrule (037671) is a specialized electrical component utilized to bundle flexible copper wires safely, preventing fraying when connecting to control gear. Insulated wire end sleeves provide secure electrical contact and eliminate loose strands in industrial control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material insulation (EF008118): Polypropylene (PP)
  • With identification flag (EF007954): No
  • Material (EF002169): Copper
  • Halogen free (EF000025): Yes
  • Sleeve length (EF000014): 18 mm
  • Nominal cross section (EF001335): 25 mm²
  • Surface protection (EF000139): Tinned
  • Colour (EF000007): Black
  • Reel/roll packaging (EF001714): No
  • For cables resistant to short circuit (EF001713): Yes
  • Insulated (EF000019): Yes
  • Construction type (EF000767): Standard

More info

▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Individual ferrules - single
Construction typeStandard
Nominal cross section25 mm²
Sleeve length18 mm
InsulatedYes
Material insulationPolypropylene (PP)
Halogen freeYes
ColourBlack
MaterialCopper
Surface protectionTinned
For cables resistant to short circuitYes
With identification flagNo
Reel/roll packagingNo

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
