View larger
Images are for illustrative purposes only. Please refer to data sheet for details

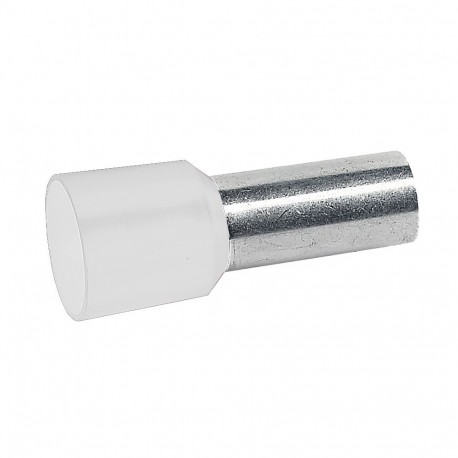

037670 LEGRAND TOE STARFIX 16 MM2
037670
037670
LEGRAND
100 Pcs.
TOE STARFIX 16 MM2
Starfix Insulating Flange Single Ferrule 16mm² White
Starfix wiring ferrules for 16mm² section conductors - White
Cables > Cable end sleeve
CAB-3 SIGNALERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Individual ferrules - single
| Construction type | Standard |
|---|---|
| Nominal cross section | 16 mm² |
| Sleeve length | 12 mm |
| Insulated | Yes |
| Material insulation | Polypropylene (PP) |
| Halogen free | Yes |
| Colour | White |
|---|---|
| Material | Copper |
| Surface protection | Tinned |
| For cables resistant to short circuit | Yes |
| With identification flag | No |
| Reel/roll packaging | No |
| Feature Name | Feature Value |
|---|---|
| Material insulation (EF008118) | Polypropylene (PP) |
| With identification flag (EF007954) | No |
| Material (EF002169) | Copper |
| Halogen free (EF000025) | Yes |
| Sleeve length (EF000014) | 12 mm |
| Nominal cross section (EF001335) | 16 mm² |
| Surface protection (EF000139) | Tinned |
| Colour (EF000007) | White |
| Reel/roll packaging (EF001714) | No |
| For cables resistant to short circuit (EF001713) | Yes |
| Insulated (EF000019) | Yes |
| Construction type (EF000767) | Standard |
