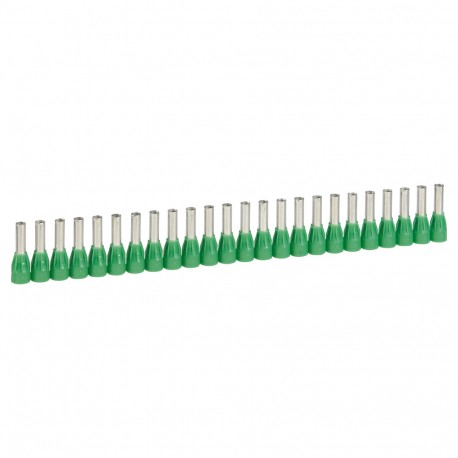

LEGRAND 037668 037668 LEGRAND TOE STARFIX 6MM2 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037668 LEGRAND TOE STARFIX 6MM2

037668

037668

LEGRAND

250 Pcs.

TOE STARFIX 6MM2 Starfix Insulating Flange Single Ferrule 6mm² Green (Supplied in Strips) Starfix wiring ferrules for conductors with a 6mm² cross-section - green

Cables > Cable end sleeve
CAB-3 SIGNALERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand ferrule (037668) provides secure wire termination for multi-strand cables, preventing loose strands and ensuring stable connections in control gear. Insulated copper sleeves are standard hardware for robust electrical distribution assemblies.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material insulation (EF008118): Polyamide (PA)
  • With identification flag (EF007954): No
  • Material (EF002169): Copper
  • Halogen free (EF000025): Yes
  • Sleeve length (EF000014): 12 mm
  • Nominal cross section (EF001335): 6 mm²
  • Surface protection (EF000139): Tinned
  • Colour (EF000007): Green
  • Reel/roll packaging (EF001714): Yes
  • For cables resistant to short circuit (EF001713): Yes
  • Insulated (EF000019): Yes
  • Construction type (EF000767): Standard

More info

▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Single ferrules (in strips) Supplied in strips to prevent loss of ferrules
Construction typeStandard
Nominal cross section6 mm²
Sleeve length12 mm
InsulatedYes
Material insulationPolyamide (PA)
Halogen freeYes
ColourGreen
MaterialCopper
Surface protectionTinned
For cables resistant to short circuitYes
With identification flagNo
Reel/roll packagingYes
