View larger
Images are for illustrative purposes only. Please refer to data sheet for details
037663 LEGRAND TOE STARFIX 1MM2
037663
037663
LEGRAND
1000 Pcs.
TOE STARFIX 1MM2

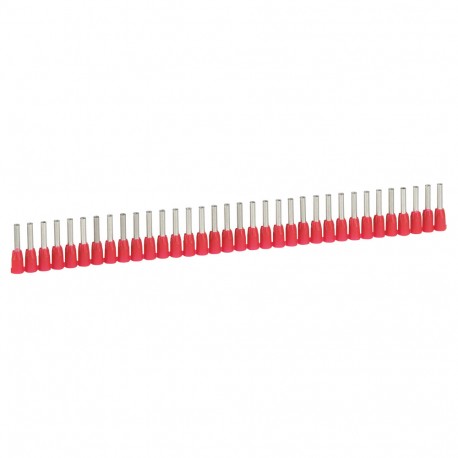

Starfix Insulating Flange Single Ferrule 1mm² Red (Supplied in Strips)
Starfix wiring ferrules for conductors with a 1mm² cross-section - red
Cables > Cable end sleeve
CAB-3 SIGNALERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Single ferrules (in strips) Supplied in strips to prevent loss of ferrules
| Construction type | Standard |
|---|---|
| Nominal cross section | 1 mm² |
| Sleeve length | 8 mm |
| Insulated | Yes |
| Material insulation | Polypropylene (PP) |
| Halogen free | Yes |
| Colour | Red |
|---|---|
| Material | Copper |
| Surface protection | Tinned |
| For cables resistant to short circuit | Yes |
| With identification flag | No |
| Reel/roll packaging | Yes |
| Feature Name | Feature Value |
|---|---|
| Material insulation (EF008118) | Polypropylene (PP) |
| With identification flag (EF007954) | No |
| Material (EF002169) | Copper |
| Halogen free (EF000025) | Yes |
| Sleeve length (EF000014) | 8 mm |
| Nominal cross section (EF001335) | 1 mm² |
| Surface protection (EF000139) | Tinned |
| Colour (EF000007) | Red |
| Reel/roll packaging (EF001714) | Yes |
| For cables resistant to short circuit (EF001713) | Yes |
| Insulated (EF000019) | Yes |
| Construction type (EF000767) | Standard |
