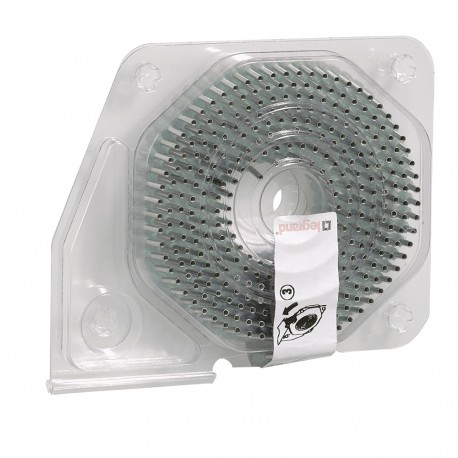

LEGRAND 037645 037645 LEGRAND STARFIX 2'5MM2 C/LADE.250UDS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037645 LEGRAND STARFIX 2'5MM2 C/LADE.250UDS

037645

037645

LEGRAND

2500 Pcs.

STARFIX 2'5MM2 C/LADE.250UDS Starfix Crimping Tool Refill Single Ferrule 2.5mm² Grey (Supplied in Strips) Starfix charger - large capacity recharge - 2.5mm² section - Gray

Cables > Cable end sleeve
CAB-3 SIGNALERS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Legrand ferrule (037645) acts as an insulated wire end sleeve that prepares multi-strand flexible conductors for reliable insertion into electrical terminals. Standard wire ferrules prevent strand spreading and improve connection durability across automation equipment.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Material insulation (EF008118): Polyamide (PA)
  • With identification flag (EF007954): No
  • Material (EF002169): Copper
  • Halogen free (EF000025): Yes
  • Sleeve length (EF000014): 7.6 mm
  • Nominal cross section (EF001335): 2.5 mm²
  • Surface protection (EF000139): Tinned
  • Colour (EF000007): Grey
  • Reel/roll packaging (EF001714): Yes
  • For cables resistant to short circuit (EF001713): Yes
  • Insulated (EF000019): Yes
  • Construction type (EF000767): Standard

More info

▲
Ferrules with insulating flange Provide an equipotential link for all the strands of a flexible conductor Active part in tinned electrolytic copper Conform to NF C 63-023 Large capacity refills Large capacity for less frequent applicator reloading Translucent packaging For direct mounting on crimping tool Cat. No. 0376 09
Construction typeStandard
Nominal cross section2.5 mm²
Sleeve length7.6 mm
InsulatedYes
Material insulationPolyamide (PA)
Halogen freeYes
ColourGrey
MaterialCopper
Surface protectionTinned
For cables resistant to short circuitYes
With identification flagNo
Reel/roll packagingYes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
