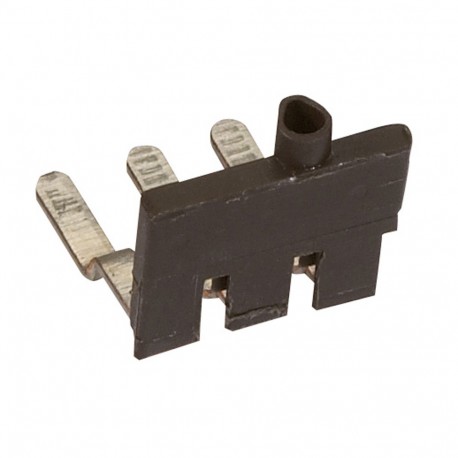

LEGRAND 037546 037546 LEGRAND COMB MARRËN 12 TERMINALS 3P P5MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037546 LEGRAND COMB MARRËN 12 TERMINALS 3P P5MM

037546

037546

LEGRAND

10 Pcs.

COMB MARRËN 12 TERMINALS 3P P5MM Viking 3 Screw Terminal Block 3 Level Bridging Comb 12 Block 5mm Width Brown Viking 3 screw 3 deck comb for 12 terminals - 5mm pitch - brown

Connectors > Cross-connector for terminal block
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand comb terminals, such as model 037546, function as push-in jumper bars that interconnect multiple terminal block connections for power and signal distribution in electrical enclosures. Using comb bridges helps engineers maintain neat, reliable configurations while reducing manual wiring efforts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of bridged clamps (EF002550): 12
  • Model (EF000010): Push-in type jumper bar
  • Modular spacing (EF000394): 5 mm
  • Colour (EF000007): Brown
  • Rated voltage (EF000228): 800 V
  • Insulated (EF000019): Yes
  • Rated current In (EF008250): 24 A
  • With contact protection (EF008186): Yes

More info

▲
Bridging combs for 3-level screw terminal blocks For lower and intermediate levels of blocks Cat. Nos. 0371 51/52. Side mounting Isolated and separable
ModelPush-in type jumper bar
Number of bridged clamps12
Rated current In24 A
Rated voltage800 V
InsulatedYes
With contact protectionYes
Mounting methodOther
Modular spacing5 mm
ColourBrown

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
