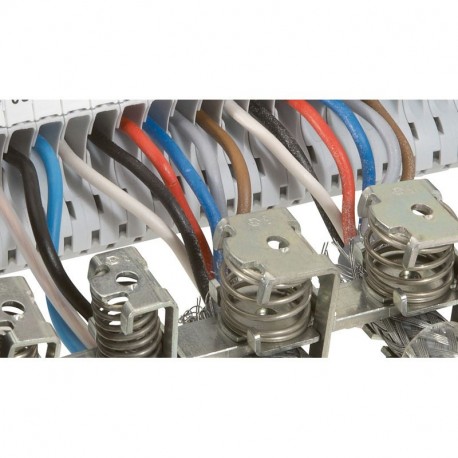

LEGRAND 037532 037532 LEGRAND BRACKET FOR SHIELD D10/20MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037532 LEGRAND BRACKET FOR SHIELD D10/20MM

037532

037532

LEGRAND

4 Pcs.

BRACKET FOR SHIELD D10/20MM Viking 3 Terminal Block Shielding Clamp for Cable Diameter 10mm to 20mm Shielding bracket for Borna Viking 3 screw/spring - cable Ø 10 to 20mm

Automation > Shield connection clamp
VIKING TERMINALS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 037532 bracket for shield accommodates larger diameter cables to ensure low-impedance grounding paths inside electrical distribution assemblies. Such components prevent electromagnetic disturbances from corrupting sensitive communication and control signals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Permitted cable diameter (EF008217): 10 mm
  • Height (EF000040): 40 mm
  • Mounting method (EF000003): Rail-/direct mounting
  • Type of electric connection (EF003961): Spring connection
  • Explosion-tested version 'Ex e' (EF008498): Yes
  • Operating temperature (EF002393): -5 °C
  • Width (EF000008): 24.8 mm

More info

▲
Shielding accessories Ensure safe, simple connection of cable shielding Shielding clamps For screw and spring terminal blocks - mounted by pivoting on collector bar 10 x 3mm Cat. No. 0375 34 - mounted on plate with M4 screws (supplied) - mounted on rail 4 with Cat. No. 0364 69
Permitted cable diameter10-20 mm
Mounting methodRail-/direct mounting
Type of electric connectionSpring connection
Width24.8 mm
Height40 mm
Operating temperature-5-40 °C
Explosion-tested version 'Ex e'Yes
