View larger
Images are for illustrative purposes only. Please refer to data sheet for details

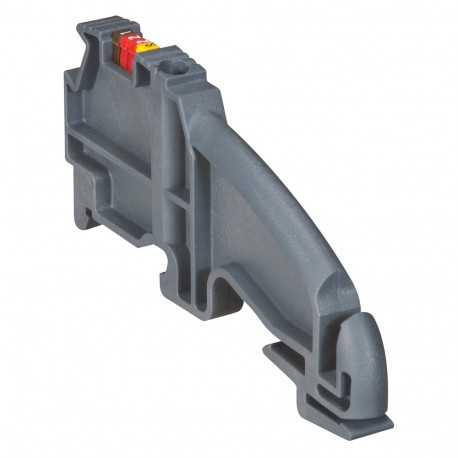

037512 LEGRAND STOP THE FIXATION STEP 10MM
037512
037512
LEGRAND
10 Pcs.
STOP THE FIXATION STEP 10MM
Viking 3 Terminal Block End Stop 10mm
XL³ 400 and Borna Viking 3 end stop support - 10mm pitch
Automation > End bracket for terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
End stops Grey Compatible with CAB 3 marking system 10mm width For rails 4 depth 15mm and 4 EN 60715 depth 7.5mm (except for rail fixed on plate) and 15mm - IP2X terminal block with fl at steel bar 12 x 2mm Cat. No. 0048 19 - Copper bar 12 x 4mm Cat. No. 0373 89 - Shielding bar 10 x 3mm Cat. No. 0375 34
| Colour | Grey |
|---|---|
| Mounting method | DIN rail (top hat rail) 35 mm |
| Type of latching | Screwable |
| Material | Plastic |
| Inflammability class of insulation material according to UL94 | V2 |
|---|---|
| Width | 10 mm |
| Height | 51.5 mm |
| Depth | 114 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 51.5 mm |
| Material (EF002169) | Plastic |
| Inflammability class of insulation material according to UL94 (EF002521) | V2 |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Depth (EF000049) | 114 mm |
| Colour (EF000007) | Grey |
| Type of latching (EF002667) | Screw fix |
| Width (EF000008) | 10 mm |
