View larger
Images are for illustrative purposes only. Please refer to data sheet for details

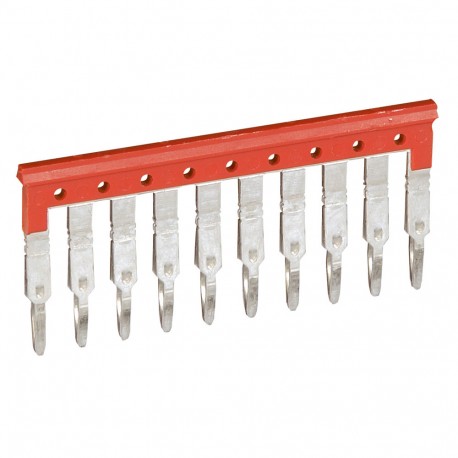

037501 LEGRAND COMB AUTO 10 TERMINALS 5MM PITCH
037501
037501
LEGRAND
20 Pcs.
COMB AUTO 10 TERMINALS 5MM PITCH
Viking 3 Terminal Block Width Bridging Comb 10 Block Width 5mm
Viking Terminal Comb 3 screw and spring for 10 terminals - 5 step - red
Connectors > Cross-connector for terminal block
VIKING TERMINALS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Bridging accessories Bridging combs for screw and spring terminal blocks Front mounting (automatic insertion), screwless Isolated and separable. Consecutive or alternating connection. Red Blocks Cat. Nos. 0371 51/52: upper level only Block Cat. No. 0372 56: lower level only
| Model | Push-in type jumper bar |
|---|---|
| Number of bridged clamps | 10 |
| Rated current In | 24 A |
| Rated voltage | 800 V |
| Insulated | Yes |
| With contact protection | Yes |
|---|---|
| Mounting method | Pluggable |
| Modular spacing | 5 mm |
| Colour | Red |
| Feature Name | Feature Value |
|---|---|
| Number of bridged clamps (EF002550) | 10 |
| Model (EF000010) | Push-in type jumper bar |
| Modular spacing (EF000394) | 5 mm |
| Mounting method (EF000003) | Pluggable |
| Colour (EF000007) | Red |
| Rated voltage (EF000228) | 800 V |
| Insulated (EF000019) | Yes |
| Rated current In (EF008250) | 24 A |
| With contact protection (EF008186) | Yes |
