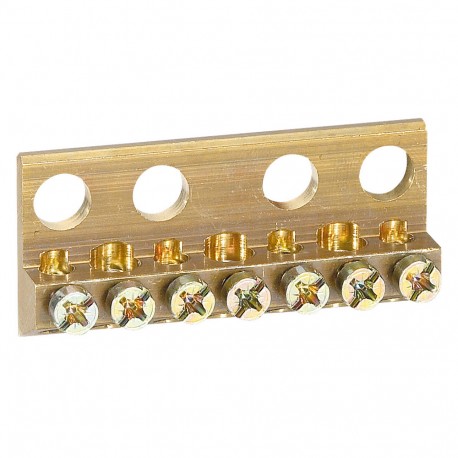

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
037405 LEGRAND BORNA
037405
037405
LEGRAND
5 Pcs.
BORNA
Connectors with 7 outgoing terminals - 400 A
7-output connector 400A
Automation > Busbar
SPLITTERS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)5
- Volume (dm3)0.235
- Weight (g)393.00
Product characteristics
ConnectorsWith 7 outgoing terminals 400 A
- Fits onto flat copper bars
- Capacity:
- 4 x Ø 5.3 mm outgoing terminals for 1.5 to 6 mm² connection
- 3 x Ø 7.5 mm outgoing terminals for 6 to 16 mm² connection
General characteristics
Connection- "Standard" distribution
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 29 mm |
| Model (EF000010) | Profile |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 11.5 mm |
| Length (EF001438) | 62.5 mm |
| Rated current In (EF008250) | 400 A |
| Flexible (EF000083) | No |
