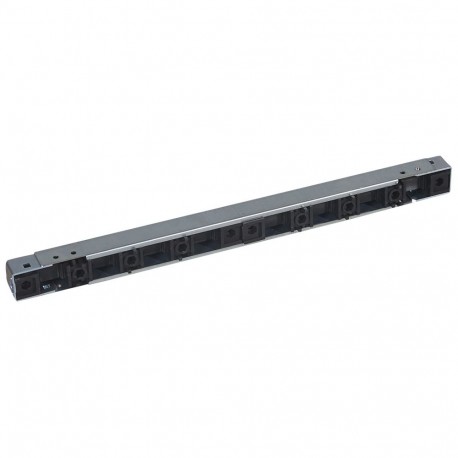

LEGRAND 037386 037386 LEGRAND XL3 SUPPORT BARS TO THE PROF 975 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037386 LEGRAND XL3 SUPPORT BARS TO THE PROF 975

037386

037386

LEGRAND

1 Pcs.

XL3 SUPPORT BARS TO THE PROF 975 Support insulating bars, aluminium in C -630 to 1600A - closet P. 975mm -wheelbase 75mm Insulating support for aluminum bars in C - 630/1600A for D975mm cabinet

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand xl3 support bars to the prof 975 (part number 037386) are used in modular enclosure assemblies to securely mount internal profiles, wire management channels, and functional partitions. These support bars ensure robust mechanical stability and precise component alignment inside distribution cabinets.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting bar
  • Material (EF002169): Plastic
  • Colour (EF000007): White
  • RAL-number (EF000116): 7035

More info

▲

Product features

Brackets insulators of 630 to 1600 A VX3 - For aluminium bars copper bonding tinned in C Bars aligned in a closet or cell side - All the mounts possible in cabinets XL3 4000: - vertical in wardrobe - vertical side behind the stile - a vertical side in the cell internal - horizontal up - or down- horizontal transfer - isolation Voltage Ui: 1000 V - impulse Voltage Uimp: 8 kV - Wheelbase 75 mm for cabinets with bottom of 975 mm

General characteristics

Distribution optimized VX3/HX3 - in closet XL3 4000
