View larger
Images are for illustrative purposes only. Please refer to data sheet for details

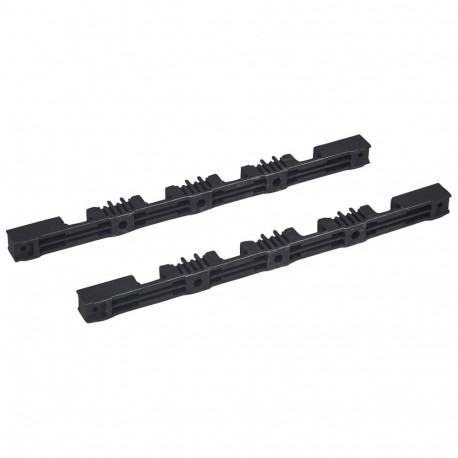

037368 LEGRAND XL3 SUPPORT BARS TO THE PROF 975
037368
037368
LEGRAND
1 Pcs.
XL3 SUPPORT BARS TO THE PROF 975
Support insulating bars, aluminium in C -630 to 1600A - closet P. 975mm -wheelbase 125 mm
Insulating support for aluminum bars in C - 630/1600A - D975mm cabinet
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Brackets insulators of 630 to 1600 A VX3 - For aluminium bars copper bonding tinned in C Bars aligned in a closet or cell side - All the mounts possible in cabinets XL3 4000: - vertical in wardrobe - vertical side behind the stile - a vertical side-cell side-internal - horizontal top or bottom - horizontal transfer - isolation Voltage Ui: 1000 V - impulse Voltage Uimp: 8 kV - Wheelbase of 125 mm for cabinets depth 975 mm The support can be doubled to an intensity of 3200 ToGeneral characteristics
Distribution optimized VX3/HX3 - in closet XL3 4000| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Mounting bar |
| Material (EF002169) | Plastic |
| Colour (EF000007) | Black |
