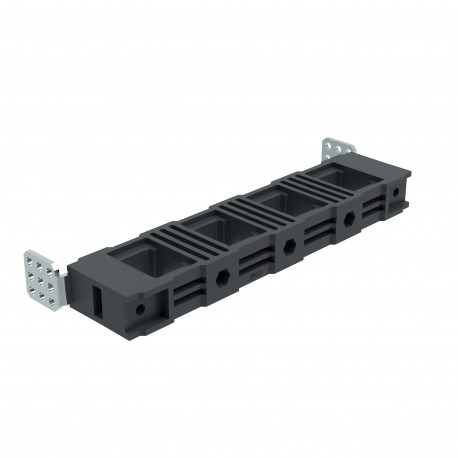

LEGRAND 037366 037366 LEGRAND XL3 SUPPORT BARS TO THE PROF 725 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037366 LEGRAND XL3 SUPPORT BARS TO THE PROF 725

037366

037366

LEGRAND

1 Pcs.

XL3 SUPPORT BARS TO THE PROF 725 Support insulating bars, aluminium in C - 630 to 1600 A - for closet P. 725 or 475 mm Insulating support for aluminum bars in C - 630/1600A - D725 or 475mm cabinet

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

XL3 SUPPORT BARS TO THE PROF 725 units manufactured by Legrand are utilized within modular distribution boards to provide stable mounting foundations for internal chassis components, busbar supports, and cable management accessories. These structural bars ensure rigid alignment throughout complex electrical enclosure layouts.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Mounting bar
  • Material (EF002169): Plastic
  • Colour (EF000007): Black

More info

▲

Product features

Brackets insulators of 630 to 1600 A VX3 - For aluminium bars copper bonding tinned in C Bars aligned in a closet or cell side - All the mounts possible in cabinets XL3 4000: - vertical in wardrobe - vertical side behind the stile - a vertical side-cell side-internal - horizontal up - or down- horizontal transfer - isolation Voltage Ui: 1000 V - impulse Voltage Uimp: 8 kV - Wheelbase 75 mm for cabinets with a background of 725 mm or 475 mm in chassis part

General characteristics

Distribution optimized VX3/HX3 - in closet XL3 4000

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
