View larger
Images are for illustrative purposes only. Please refer to data sheet for details

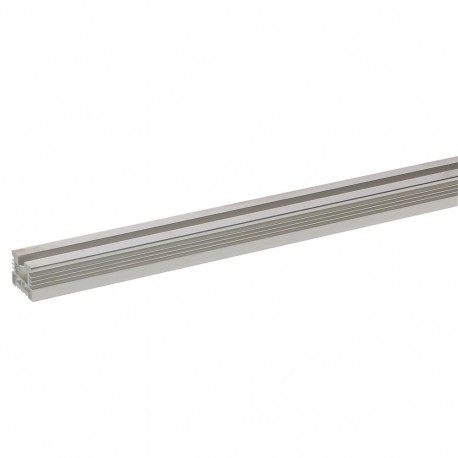

037355 LEGRAND XL3 BAR TO C 800 TO
037355
037355
LEGRAND
1 Pcs.
XL3 BAR TO C 800 TO
C-section aluminium bar 40x30 mm - length 1780 mm and cross section 549 mm
Aluminium C-bar - section 549mm² - L. 1780mm for XL³ boxes/cabinets
Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)3.00
- Weight (g)2 700.00
Product characteristics
C-section aluminium bars- Tinned coppered C-section aluminium bars
- Electrolytic compatibility with copper guaranteed
- Cross section : 549 mm
- I permissible IP ? 30 : 1000 A
- I permissible IP > 30 : 800 A
General characteristics
Busbars and accessories| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 30 mm |
| Model (EF000010) | Profile |
| Surface protection (EF000139) | Tinned |
| Width (EF000008) | 40 mm |
| Length (EF001438) | 1750 mm |
| Rated current In (EF008250) | 800 A |
| Flexible (EF000083) | No |
