LEGRAND 037324 037324 LEGRAND SUPPORT XL3 BARS View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037324 LEGRAND SUPPORT XL3 BARS

037324

037324

LEGRAND

1 Pcs.

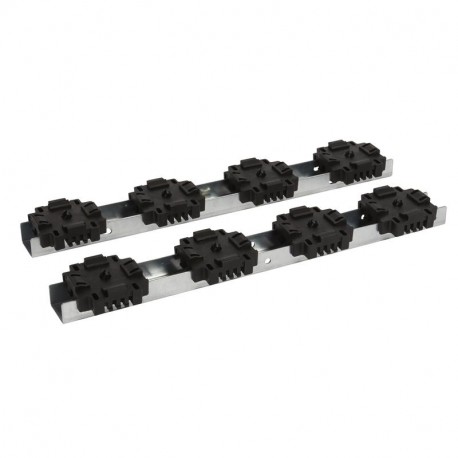

SUPPORT XL3 BARS Isolating support for XL³ - 1 or 4 bars/pole - up to 4000 A Insulating bracket with 1 to 4 bars per pole - up to 4000A - XL³ 4000

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A busbar support framework securely anchors and isolates heavy copper or aluminum power distribution bars inside large switchgear assemblies, preventing mechanical displacement under fault currents. This Legrand 037324 bracket set is built to support XL3 bar configurations within heavy-duty enclosures.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 250 mm
  • Depth (EF000049): 567 mm
  • Suitable for enclosure building width (EF000326): 1203 mm
  • Width (EF000008): 94 mm
  • Suitable for enclosure building depth (EF000327): 803 mm
  • Suitable for enclosure building height (EF009583): 2003 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)6.775
  • Weight (g)3 964.00
Product characteristics
1 to 4 bars per pole
≤ 4000 A
  • Supports for 4 flat bars from 50 x 5 to 125 x 5 mm or 3 bars from 50 x 10 to 120 x 10 mm, in aligned position
  • Fixed support
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
