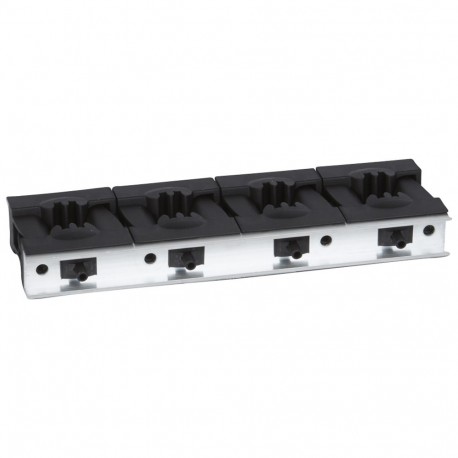

LEGRAND 037323 037323 LEGRAND SUPPORT XL3 JDB 1600A STEERING WHEEL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037323 LEGRAND SUPPORT XL3 JDB 1600A STEERING WHEEL

037323

037323

LEGRAND

1 Pcs.

SUPPORT XL3 JDB 1600A STEERING WHEEL Additional support for XL³ - in addition to 373 22 support Complementary flywheel holder 1 or 2 bars per pole - up to 1600A

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

037323 LEGRAND SUPPORT XL3 JDB 1600A STEERING WHEEL components serve as heavy-duty structural supports and mechanical brackets engineered to mount high-amperage busbar systems securely within large power distribution switchboards. They provide robust mechanical stability and maintain correct phase spacing under high load stresses.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 171 mm
  • Depth (EF000049): 300 mm
  • Colour (EF000007): Black
  • Suitable for enclosure building width (EF000326): 1202 mm
  • Width (EF000008): 40 mm
  • Suitable for enclosure building depth (EF000327): 802 mm
  • Suitable for enclosure building height (EF009583): 2002 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)4.00
  • Weight (g)1 028.00
Product characteristics
1 or 2 bars per pole
  • Supports for flat copper bars 50 x 5, 63 x 5, 75 x 5, 80 x 5 and 100 x 5 mm, in aligned position
≤ 1600 A
  • Additional support
  • Mounted in addition to fixed support Cat.No 0 373 22 to comply with the distances (Isc withstand)
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution
