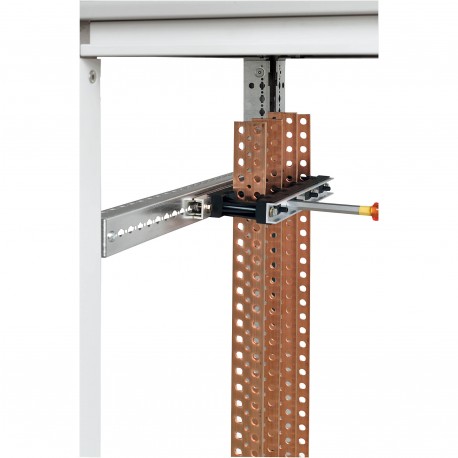

LEGRAND 037322 037322 LEGRAND SUPPORT XL3 GAME BARS 1600A View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037322 LEGRAND SUPPORT XL3 GAME BARS 1600A

037322

037322

LEGRAND

1 Pcs.

SUPPORT XL3 GAME BARS 1600A Isolating support for XL³ - 1 or 2 bars/pole - up to 1600 A Insulating bracket 1 or 2 bars per pole - up to 1600A - XL³ 4000

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A SUPPORT XL3 GAME BARS 1600A manufactured by Legrand (part number 037322) is used in heavy-duty switchboard assemblies to support and secure main busbar systems up to 1600A. Busbar supports maintain the rigid spacing and insulation clearance required to withstand high short-circuit electromagnetic forces in power distribution grids. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 171 mm
  • Depth (EF000049): 345 mm
  • Suitable for enclosure building width (EF000326): 1201 mm
  • Width (EF000008): 40 mm
  • Suitable for enclosure building depth (EF000327): 801 mm
  • Suitable for enclosure building height (EF009583): 2001 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)5.00
  • Weight (g)1 108.00
Product characteristics
1 or 2 bars per pole
  • Supports for flat copper bars 50 x 5, 63 x 5, 75 x 5, 80 x 5 and 100 x 5 mm, in aligned position
≤ 1600 A
  • Fixed support
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution
