LEGRAND 037320 037320 LEGRAND SUPPORT.XL3 JDB 630/800 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037320 LEGRAND SUPPORT.XL3 JDB 630/800

037320

037320

LEGRAND

1 Pcs.

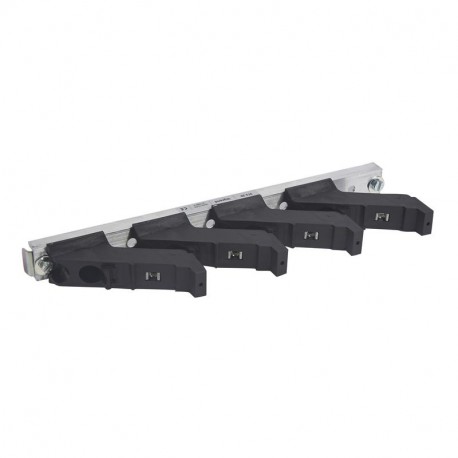

SUPPORT.XL3 JDB 630/800 Isolating support for XL³ - 1 bar/pole - up to 800 A Insulating bracket 1 bar per pole - up to 800A - XL³ 800/4000

Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A LEGRAND SUPPORT.XL3 JDB 630/800 functions as a structural framework component within electrical enclosure systems, providing mechanical reinforcement and device mounting support for large distribution assemblies. Such profiles maintain structural integrity and alignment across complex industrial switchgear configurations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 100 mm
  • Depth (EF000049): 344 mm
  • Colour (EF000007): Black
  • Suitable for enclosure building width (EF000326): 1199 mm
  • Width (EF000008): 36.5 mm
  • Suitable for enclosure building depth (EF000327): 400 mm
  • Suitable for enclosure building height (EF009583): 1999 mm

More info

▲
  • Pack (number of units)1
  • Volume (dm3)2.56
  • Weight (g)621.00
Product characteristics
1 bar per pole
≤ 800 A
  • Support for flat copper bars 18 x 4, 25 x 5, 32 x 5, 50 x 5 and 63 x 5 mm in sloping position
General characteristics
Isolating supports for busbars for XL³ enclosures
  • Standard distribution

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
