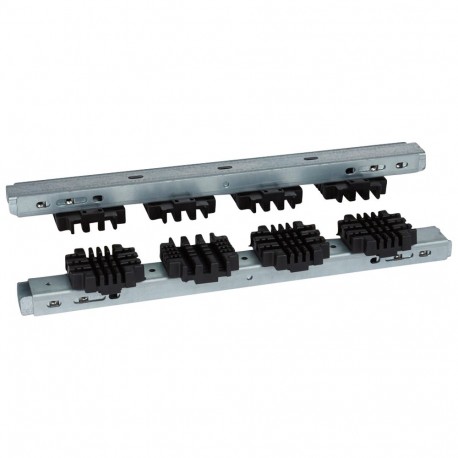

037313 LEGRAND XL3 SUPPORT BAR STEERING WHEEL
037313
037313
LEGRAND
1 Pcs.
XL3 SUPPORT BAR STEERING WHEEL
Additional isolating support for busbar 6300 A - 3 bars 200 x 10 mm
Steering wheel support for busbar 6300A - XL³ 6300 cabinet
Automation > Component for installation (switchgear cabinet)
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)6.461
- Weight (g)6 176.00
Product characteristics
1 to 4 bars per pole≤ 6300 A
- Reinforced 4P isolating supports
- Hold flat copper bars in position
- Up to three 200 x 10 mm bars per pole
- Additional support
- Mounted in addition to fixed support Cat.No 0 373 12 to comply with the distances (Isc withstand)
General characteristics
Isolating supports for busbars for XL³ enclosures- Standard distribution
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 165 mm |
| Model (EF000010) | Other |
| Material (EF002169) | Other |
| Depth (EF000049) | 567 mm |
| Colour (EF000007) | Other |
| Width (EF000008) | 94 mm |
