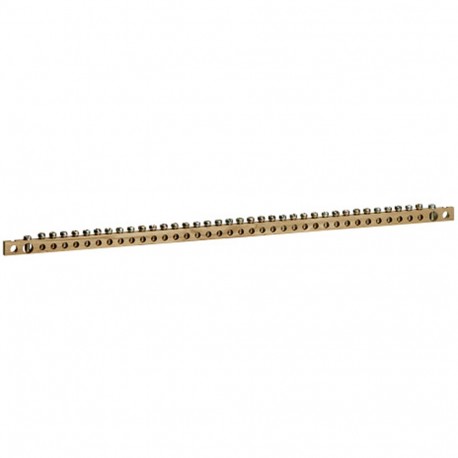

LEGRAND 037301 037301 LEGRAND COPPER BAR PERFORATED 440MM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

037301 LEGRAND COPPER BAR PERFORATED 440MM

037301

037301

LEGRAND

1 Pcs.

COPPER BAR PERFORATED 440MM Brass bar with holes for protective conductor - for XL³ 400 - L. 456 mm Brass bar for protective conductor XL³ 400 - L. 446mm

Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Perforated copper bars like the Legrand 037301 COPPER BAR PERFORATED 440MM serve as grounding or neutral conductors inside electrical enclosures and control cabinets. The pre-punched mounting holes facilitate straightforward attachment of wiring terminals and bonding jumpers. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 12 mm
  • Model (EF000010): Profile
  • Surface protection (EF000139): Untreated
  • Width (EF000008): 6.5 mm
  • Length (EF001438): 456 mm
  • Flexible (EF000083): No

More info

▲
  • Pack (number of units)1
  • Volume (dm3)0.074
  • Weight (g)401.00
Product characteristics
Connection of protective conductors
Brass bar for protective conductor
  • Length 456 mm, 12 x 6.5 mm cross-section
    • 36 holes Ø5.3 mm (1.5 to 10 mm²)
    • 2 holes Ø9 mm (35 mm²)
    • 4 holes Ø6.5 mm (2.5 to 16 mm²)
  • Fits onto functional uprights with supplied lugs
General characteristics
Viking™ 3 accessories for terminal blocks

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
