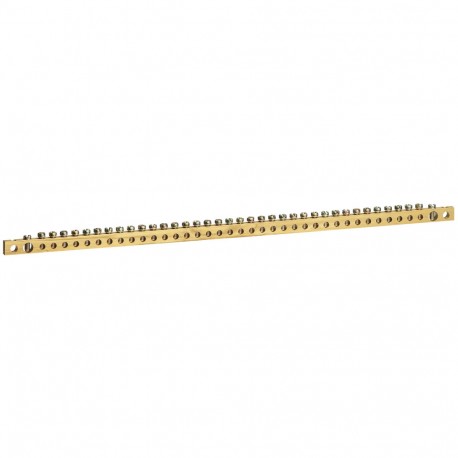

037300 LEGRAND XL3 BUS BAR EARTH
037300
037300
LEGRAND
1 Pcs.
XL3 BUS BAR EARTH
Additional brass bar - for XL³ 160/400 cabinets
Complementary brass bar for XL³ 160 box - L. 416mm
Automation > Busbar
XL3 800-4000 ENERGY DISTRIBUTION CABINETS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Pack (number of units)1
- Volume (dm3)0.031
- Weight (g)285.00
Product characteristics
Connection of protective conductorsAdditional brass bar
- Length 416 mm, 12 x 6.5 mm cross-section
- Fits directly on integrated supports in XL³ 160 cabinet or on rail symmetrical with wire guides Cat.No 0 200 94 or on support end stop Cat.No 0 375 12
- 36 holes Ø5.3 mm (1.5 to 10 mm²)
- 2 holes Ø9 mm (35 mm²)
General characteristics
Viking™ 3 accessories for terminal blocks| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 12 mm |
| Model (EF000010) | Profile |
| Surface protection (EF000139) | Untreated |
| Width (EF000008) | 6.5 mm |
| Length (EF001438) | 416 mm |
| Flexible (EF000083) | No |
